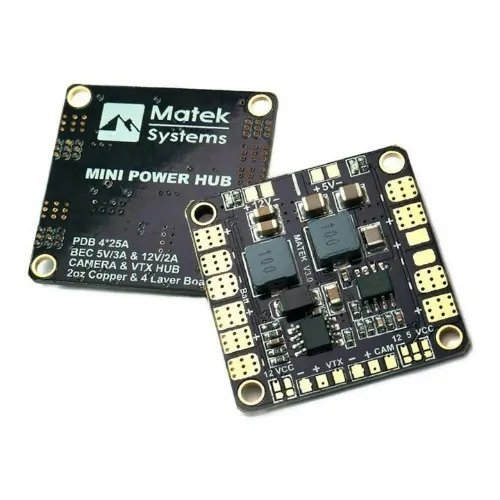

Matek Mini Power Hub Power Distribution Board with BEC 5V & 12V for FPV

The Mini POWER HUB is a compact, high-performance power distribution board designed for reliable operation in space-constrained applications. Built on a 4-layer PCB with 2oz copper, it efficiently distributes power from a single 3S–6S LiPo battery to four ESCs, while providing clean, regulated 5V and 12V outputs for onboard electronics such as cameras, video transmitters, receivers, flight controllers, servos, and LEDs.

Featuring high-efficiency synchronous DC/DC buck regulators, the Mini POWER HUB delivers stable power with efficiency up to 95%, enhanced by TVS protection for improved resistance against voltage spikes. Integrated LED indicators provide clear visual confirmation of proper voltage regulation, making installation and troubleshooting simple and reliable.

Features:

1. Ultra-compact 36 × 36 mm design
2. 4-layer PCB with 2oz copper for high current handling
3. Supports 3S–6S LiPo batteries
4. Power distribution to 4 ESCs (paired solder pads)
5. High-efficiency synchronous DC/DC regulators (up to 95%)
6. Regulated 5V (3A) and 12V (2A) BEC outputs
7. Short-circuit tolerant 5V and 12V outputs
8. TVS protection for DC/DC regulator input

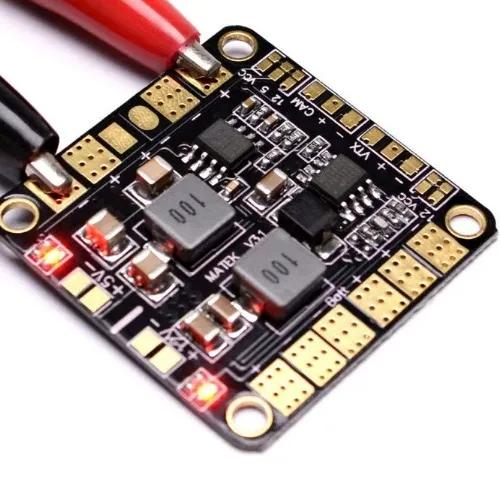

9. LED indicators for 5V and 12V regulation status
10. Selectable camera & VTX voltage via solder bridges
11. Video signal pass-through from CAM to VTX pads

Package Includes:

1 X Matek Mini Power Hub Power Distribution Board with BEC 5V & 12V for FPV
