Matek Flight Controller H743-WING V3 Ardupilot INAV 3-8S for RC Multirotor Airplane Fixed-Wing Drones

Matek’s H743 WING V3 Flight Controller arrives with new features and improvements over the V2 Version. This FC features a STM32H743VIT6 MCU running at 480MHz, dual gyros ICM42688-P(SPI1) & ICM42688-P(SPI4), a DPS310 (I2C2) barometer, and much more.

Feature:

Flight Controller:

1. MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
2. IMU: ICM42688-P(SPI1) & ICM42688-P(SPI4)
3. Baro: Infineon DPS310 (I2C2)
4. OSD: AT7456E (SPI2)
5. Blackbox: MicroSD card slot (SDIO)
6. 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
7. 13x PWM outputs(including “LED” pad)
8. 2x I2C
9. 1x CAN
10. 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
11. 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
12. 1x SPI3 breakout
13. USB/Beep Extender with Type-C(USB2.0)
14. Dual Camera Inputs switch
15. 5V/9V(12V) for Camera/VTX power switch
16. High-precision Current Sense (90A continuous, 220A peak)
17. Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
18. ADC VB2 voltage divider: 1K:20K
19. ADC AirSpeed voltage divider: 20K:20K
20. Static power 160mA@5V

FC FIRMWARE

1. ArduPilot(ChiBiOS): MATEKH743
2. INAV: MATEKH743

PDB

1. Input voltage range: 8~36V (3~8S LiPo) w/TVS protection
2. 2x ESC power pads
3. Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
4. Sense resistor: 90A continuous, 220A peak.

BEC 5V OUTPUT

1. Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
2. Output 5.15 +/- 0.1V DC
3. Continuous current 2 Amps, 3A Peak

BEC 9V /12V OUTPUT

1. Designed for Video Transmitter, Camera, Gimbal ect.
2. Continuous current 2 Amps, 3A Peak
3. 12V option with Jumper pad

BEC Vx OUTPUT

1. Designed for Servos
2. Voltage adjustable, 5V Default, 6V or 7.2V via jumper
3. Continuous current 8 Amps, 10A Peak

BEC 3.3V OUTPUT

1. Linear Regulator
2. Continuous current: 200mA

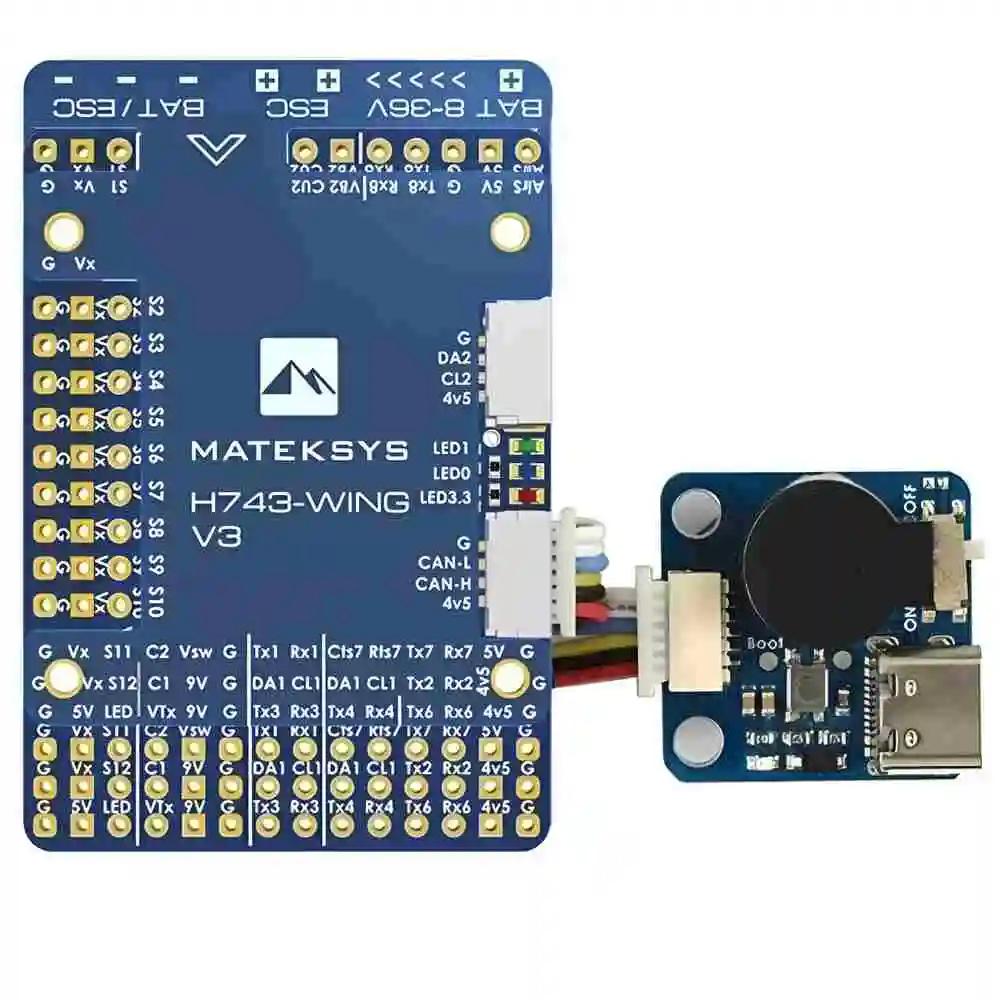

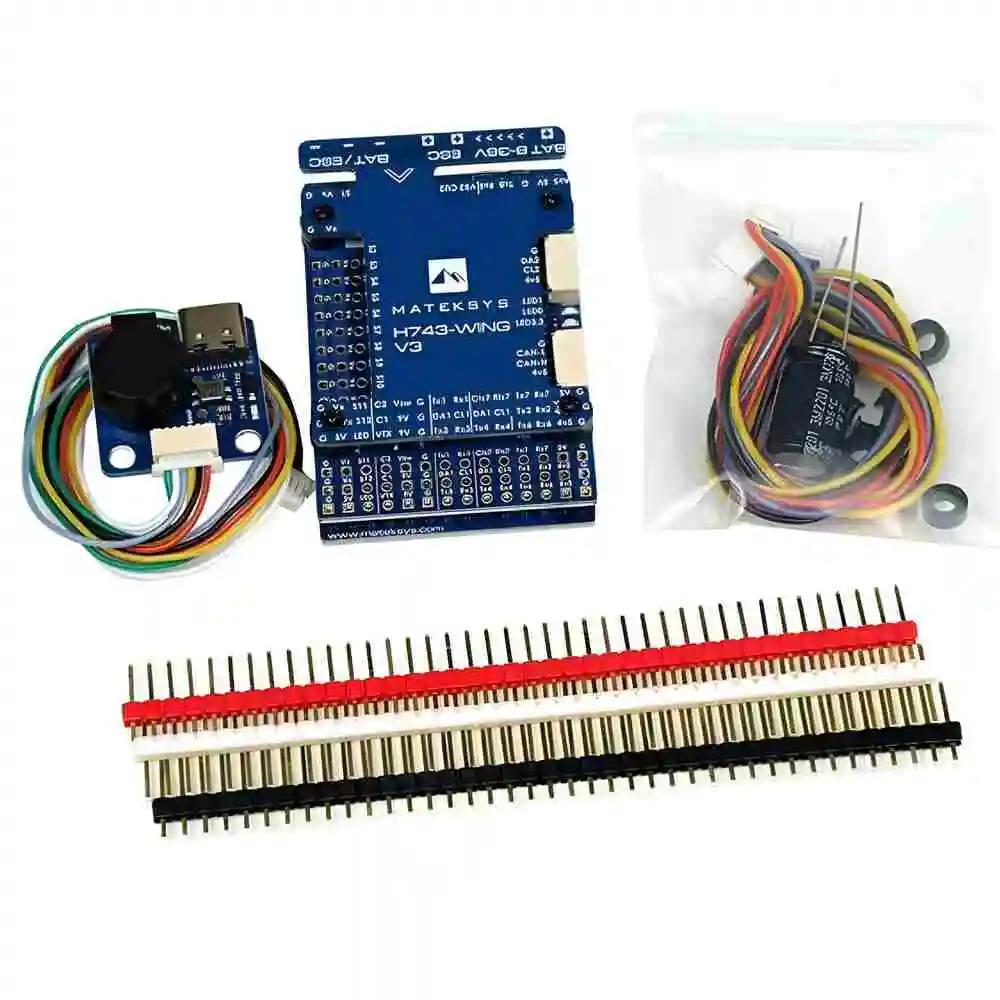

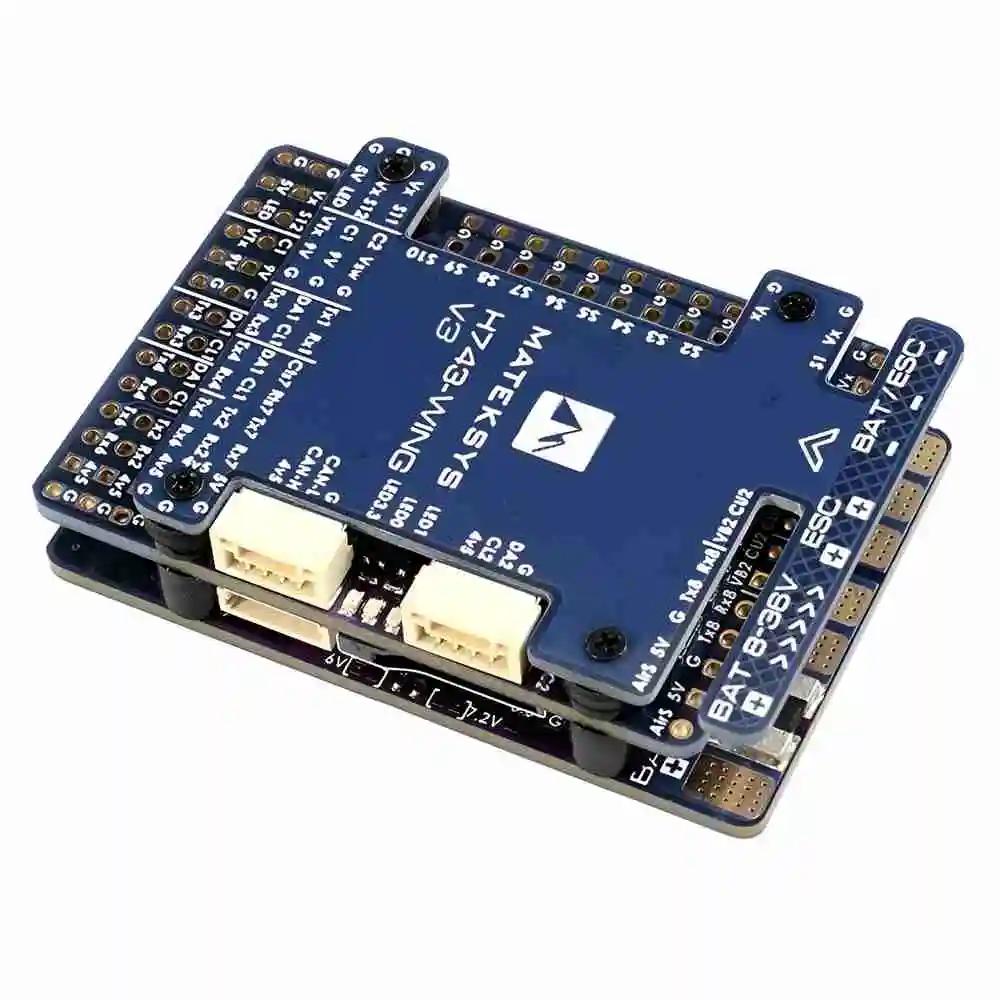

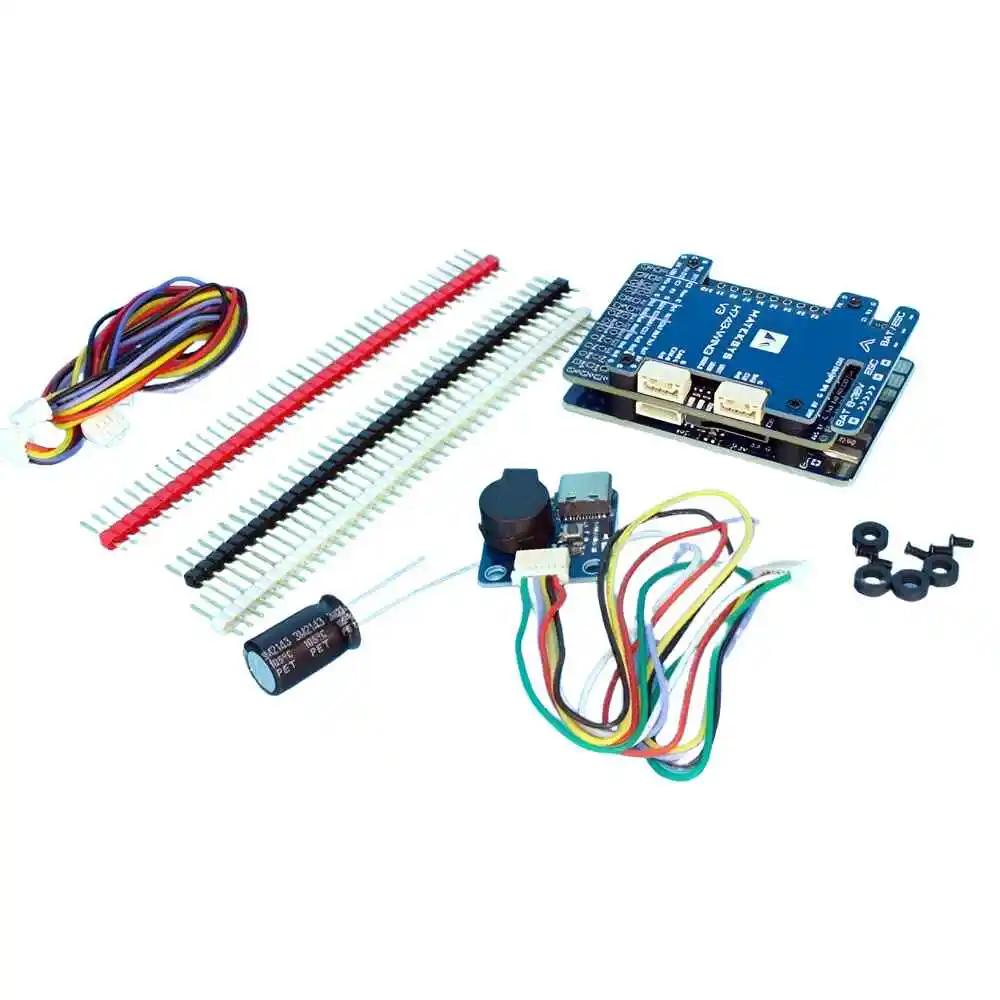

Package Includes:

1 X H743-WING v3

1 X USB(Type-C)/Beep (Passive buzzer) Extender

1 X 20cm JST-SH-6P to JST-SH-6P cable for USB extender.

2 X 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port

1 X Rubycon ZLH 35V 470uF capacitor

Dupont 2.54 pins
