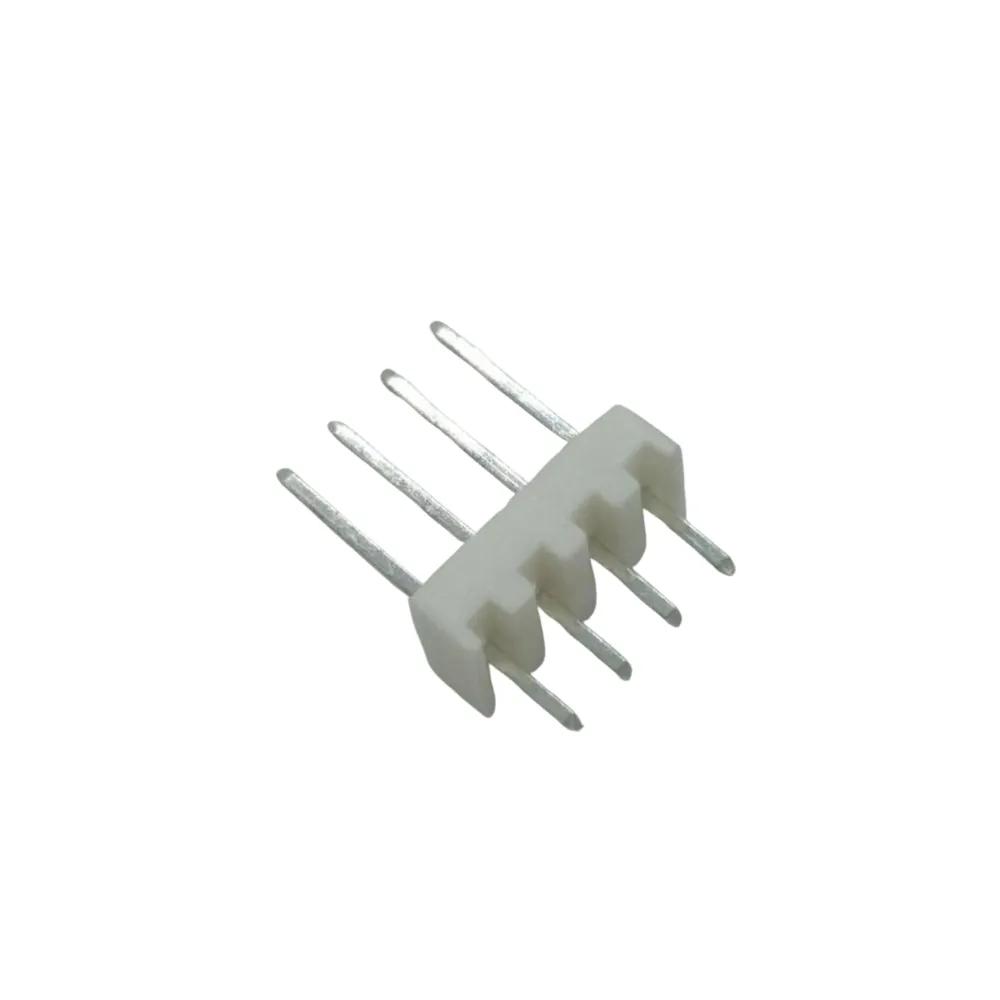

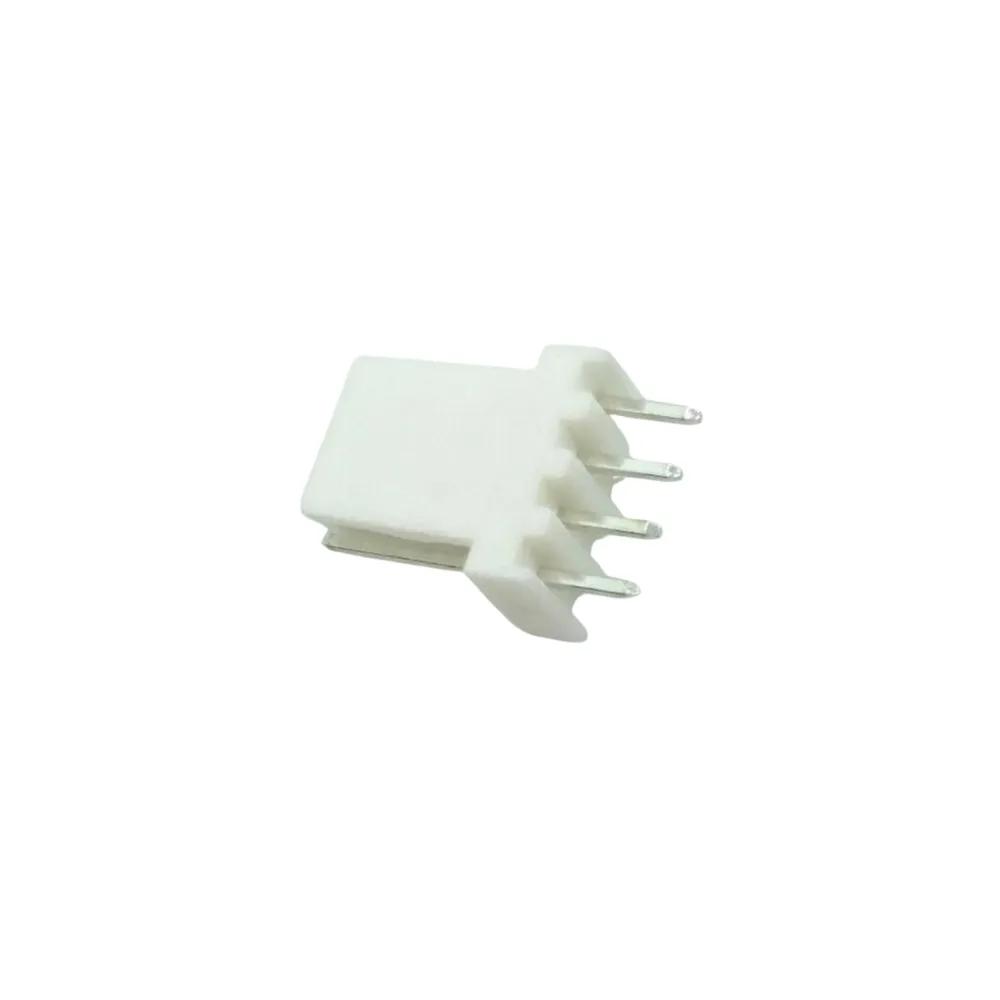

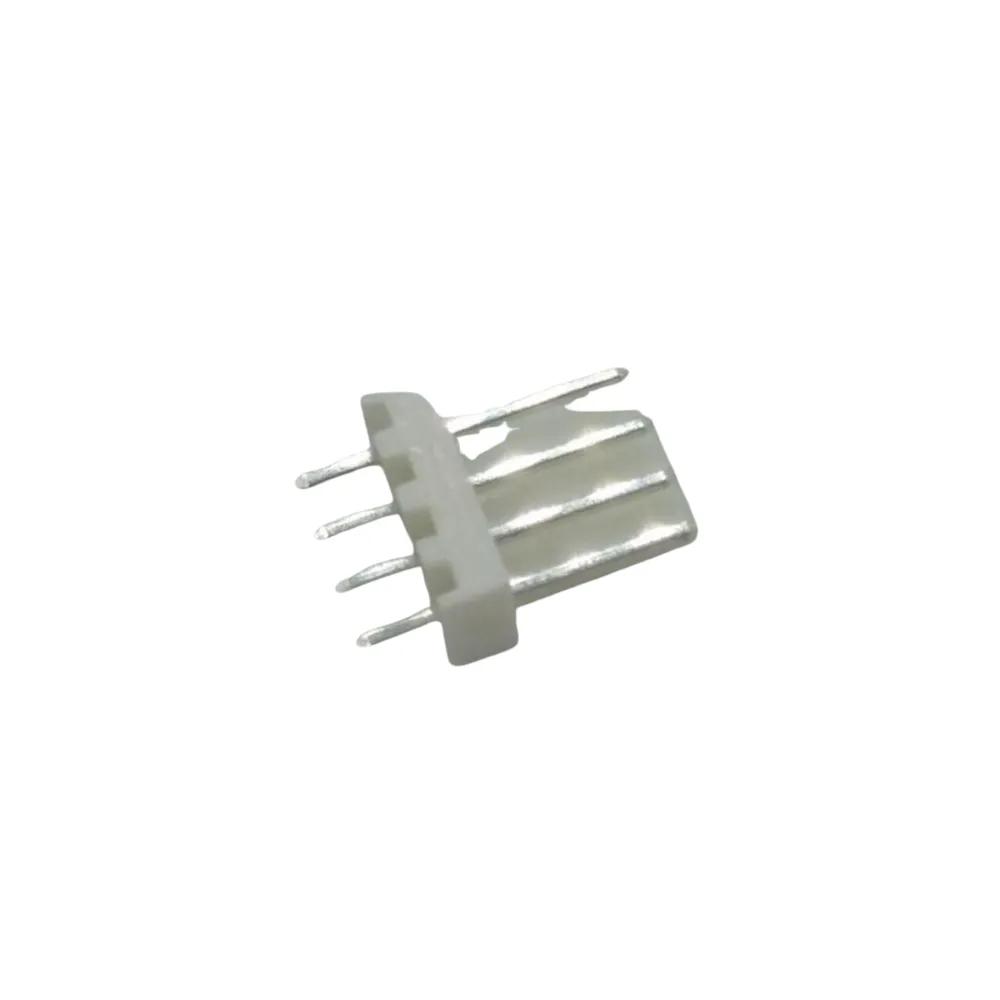

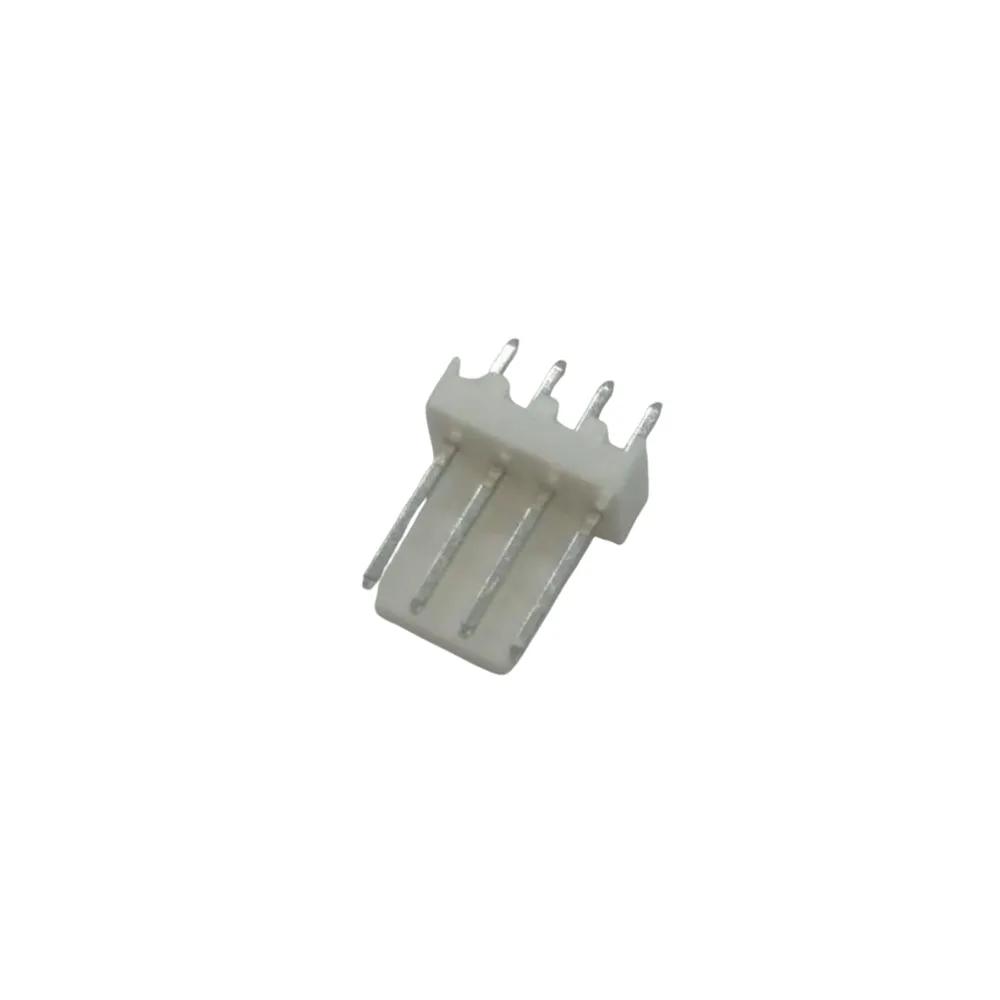

JST XH 4-Pin Right Angle Male Header Fan Connector 2.54mm Pitch

The JST XH 4-Pin Right Angle Male Header Fan Connector (2.54mm Pitch) is a compact, through-hole PCB connector designed for reliable wire-to-board connections in a wide range of electronic applications. It features a right-angle orientation, allowing horizontal cable entry, which is ideal for space-constrained designs.

This connector conforms to the JST XH series standard, with a 2.54mm pitch between pins, making it compatible with a wide variety of matching female connectors and fan headers. It is commonly used in DC fan connections, sensor modules, embedded systems, power supplies, and other low-power electronic devices.

The connector has four tinned brass pins housed in a durable, high-temperature thermoplastic shell (typically white nylon), and it supports both signal and low-current power connections.

Features:

1.  4-pin male header compatible with JST XH series connectors
2.  Right-angle (90°) through-hole design for horizontal cable entry
3.  Standard 2.54mm (0.1 inch) pitch
4.  Ideal for DC fans, LED strips, PCBs, Arduino, Raspberry Pi, and other embedded applications
5.  Secure mating with locking tab design (when used with matching female housing)
6.  Made from high-quality copper alloy pins and heat-resistant plastic housing

 Applications:

1. DC cooling fan headers (e.g., 12V brushless fans)
2. DIY electronics and hobby projects
3. Microcontroller boards (Arduino, ESP32, Raspberry Pi)
4. Robotics and automation
5. LED drivers and lighting systems
6. Consumer electronics and industrial controls

Package Includes:

1 x JST XH 4-Pin Right Angle Male Header Fan Connector 2.54mm Pitch
