HGLRC ELRS GEMINI RX Dual Receiver 915Mhz for RC Airplane FPV Drone

SKU: 120160

2799 (Inc GST)
3999

SAVE 30%

Quantity:

In Stock

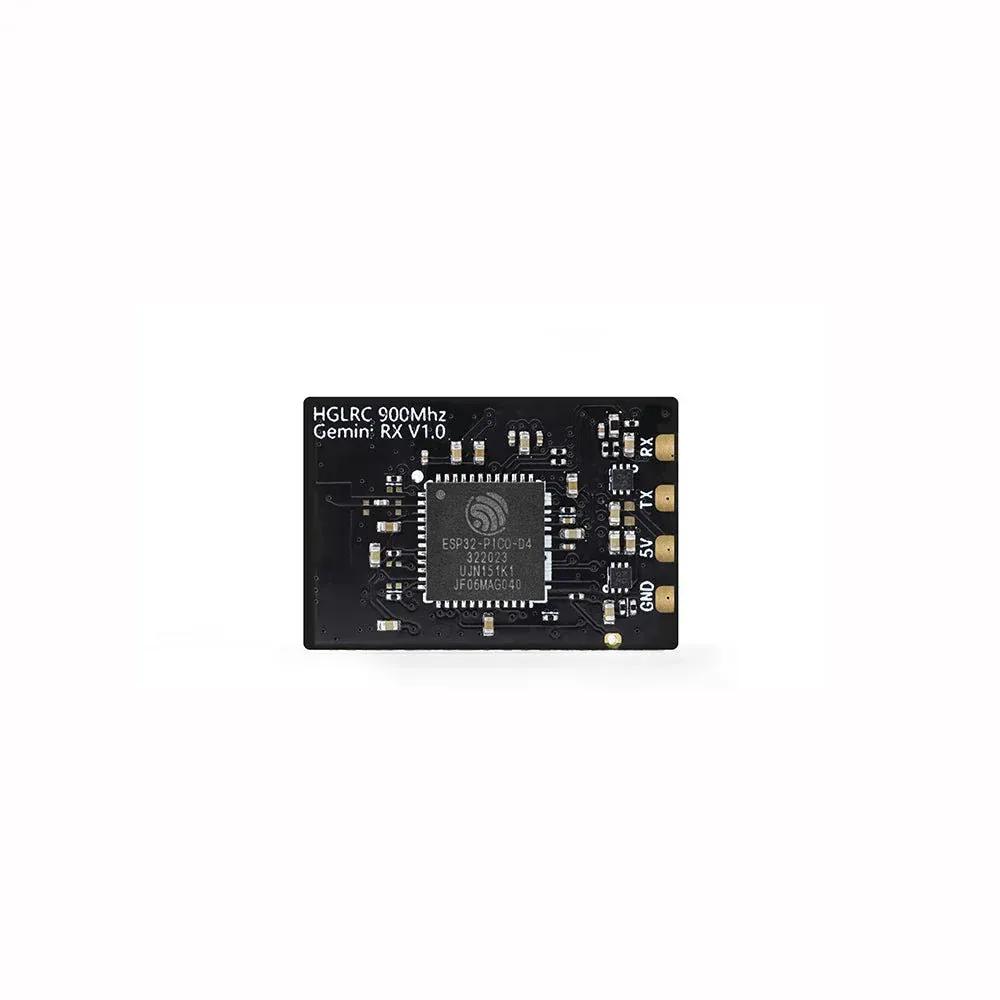

The HGLRC ELRS Gemini RX is a receiver for the ExpressLRS system at 915MHz. ExpressLRS is an advanced open source RC system with long range, low latency, high refresh rate and lots of useful features. The receiver has full true diversity". This means it has two input antennas and two radio chips. True Diversity receivers also support Gemini functionality. Antennas should ideally be rotated 90° to each other. This will allow the receiver to eliminate the attenuation caused by misoriented polarization and offer even more reliable RC transmission. This makes the receiver especially suitable for freestyle and long-range copters. It includes TCXO "temperature compensated crystal oscillator". This ensures a stable oscillator frequency and stable RC transmission even at larger temperature deviations. For easy installation the receiver is equipped with connector and solder pads. The telemetry power is up to 50mW.


Features:

1. Dual communication link, the antennas work at different frequencies at the same time, with super anti-interference performance

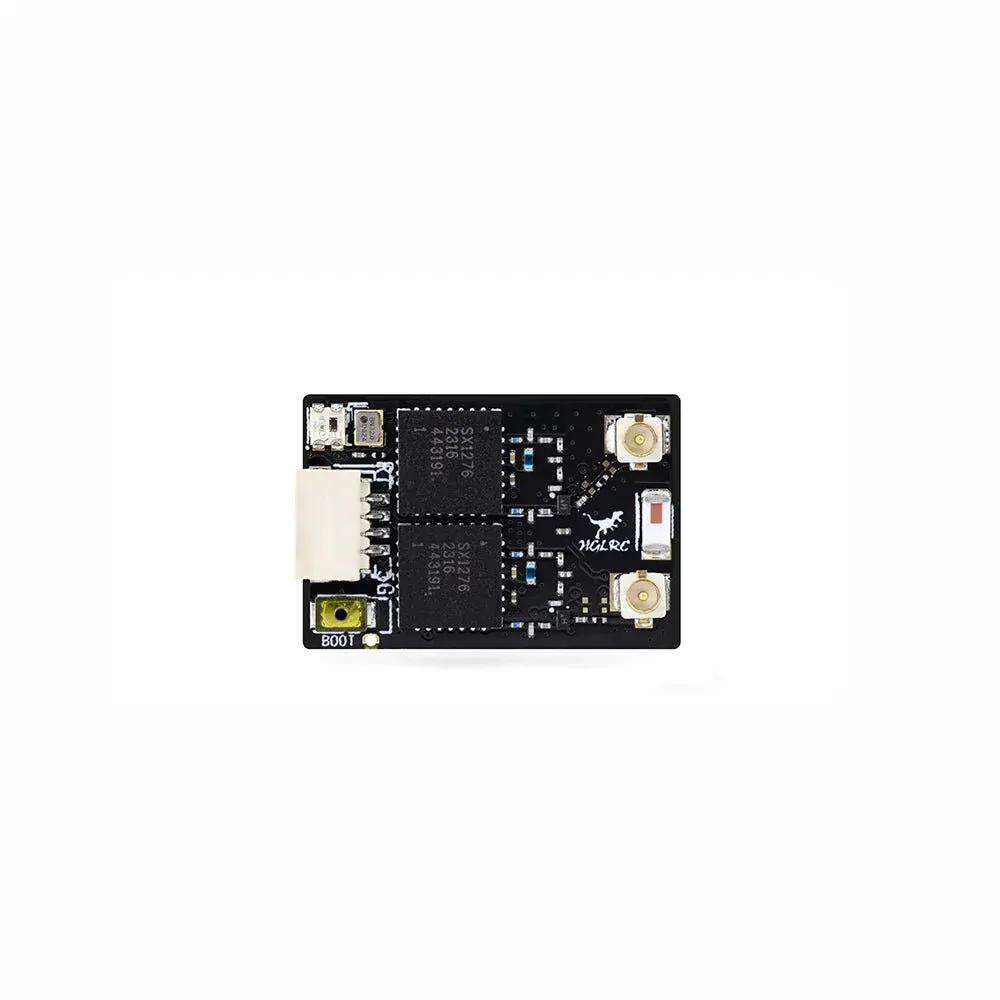

2. True diversity dual reception, integrating dual-channel SX1276 (2.4G version SX1281) and dual-channel PA/LNA, dual-antenna omni-directional reception, stable signal

3. Using TCXO temperature-compensated crystal oscillator, the frequency is more accurate and it is not afraid of high temperatures or severe cold, and it will not lose signals during long flights

4. Direct plug-in connection, plug and play, eliminating the trouble of soldering and enabling quick replacement while retaining the pad design

5. The return power of Elrs 2.4G version is up to 100mw, and the ELRS 915M version can reach up to 50mw

6.Elrs has the characteristics of long-distance remote control, low latency, and up to 1000HZ refresh rate (915M up to 200HZ)

7. It can use WiFi to upgrade firmware

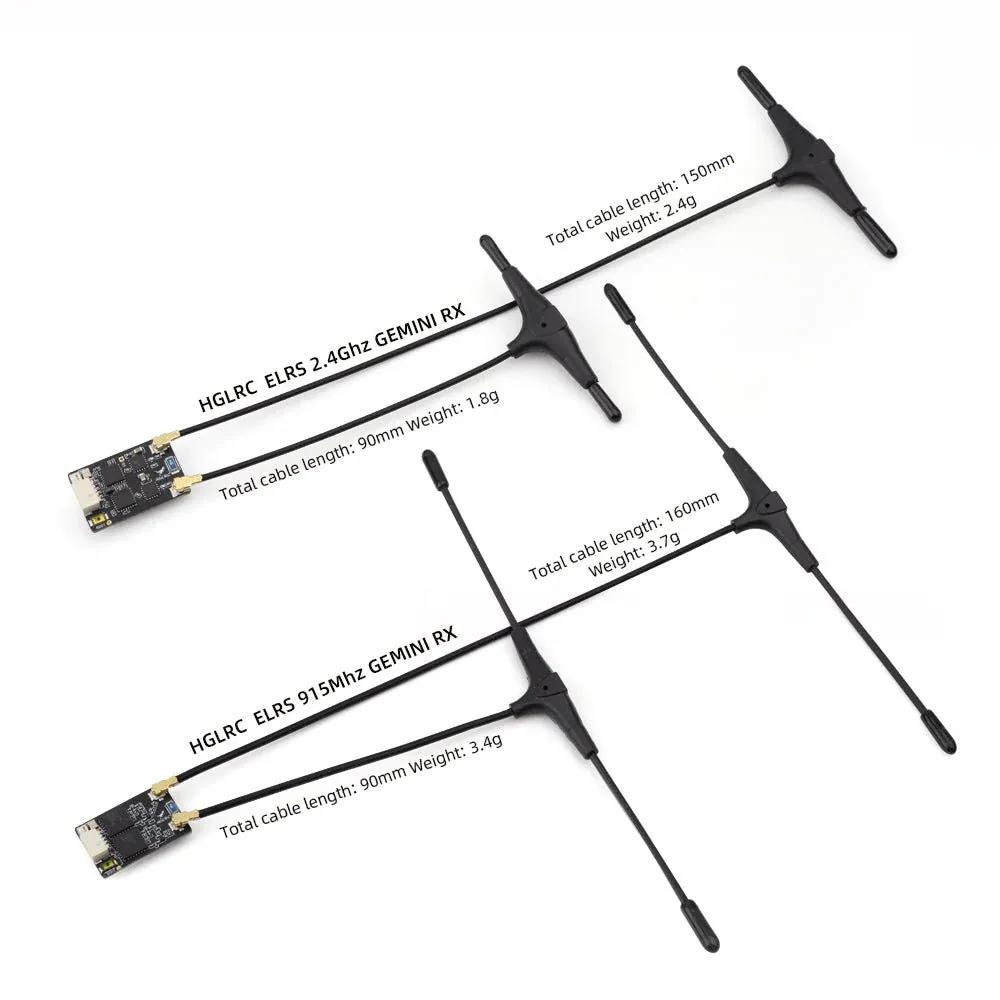

Package Includes:

1 X HGLRC ELRS GEMINI RX (2.4/915) dual reception

1 X (2.4G/915M) long antenna

1 X (2.4G/915M) short antenna

1 X heat shrink tube
