HGLRC C1 Remote Control (RC + Strap + Dongle)

SKU: 157922

7195 (Inc GST)
9999

SAVE 28%

Quantity:

Pre Order

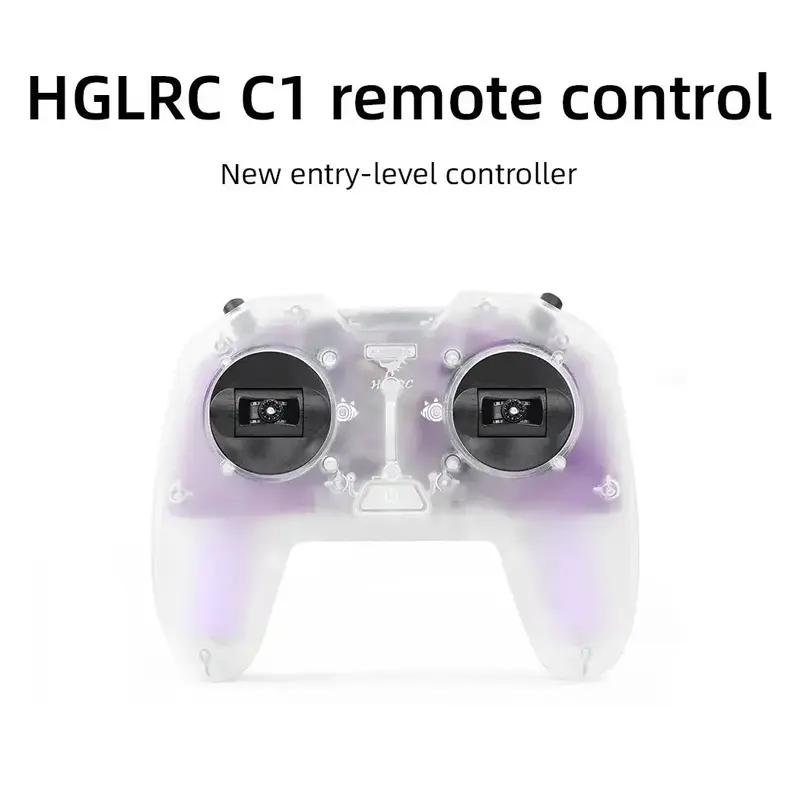

The HGLRC C1 Remote Control offers intuitive drone piloting with its ergonomic design and reliable performance. It comes with a comfortable strap for extended use and a convenient dongle for seamless connectivity. With precise control and a user-friendly interface, it enhances the flying experience while ensuring stability and responsiveness during flight.


Features:

1. Built-in 500mw radio frequency module, which can realize stable signal transmission and remote control distance;

2. The operation procedures are extremely simplified, and common operations such as frequency pairing, power adjustment, and joystick calibration can be realized without a screen, and you can get started quickly;

3. Mix and match design of three-stage switch and two-stage switch;

4. It can be equipped with a wireless dongle, no need to connect a USB data cable when practicing the simulator, and the dongle also has USB-A and USB-C dual interfaces;

5. Support the installation of third-party receivers and tuners;


Remote control parameters:

  1. Built-in ELRS: ELRS 2.4GHZ
  2. Built-in ELRS refresh rate: 250Hz
  3. Remote control sensor type: potentiometer sensor
  4. Antenna: built-in ipex1 generation copper tube antenna
  5. Working voltage: 6-8.4v DC
  6. Remote control distance: greater than 500m
  7. Output interface: TX module NANO bin (crsf protocol) TYPE-C (only charging and firmware flashing) 3.5MM analog trainer port
  8. Battery: 18650 flat head battery x2 (need to be installed by yourself)
  9. Charging: TYPE-C charging current 1.2A The charging time is about 3-4 hours
  10. Remote control channel: 8 channels
  11. Bluetooth: Bluetooth 4.2
  12. ELRS firmware upgrade method: WIFI or TYPE-C wire brush
  13. ELRS firmware version: ELRS 3.0
  14. ELRS firmware name: DIY devices 2.4 GHz DIY ESP32+ E28 2.4GHz TX
  15. Weight: 195g (excluding battery)
  16. Size: 160mmx130mmx50mm (excluding remote control)

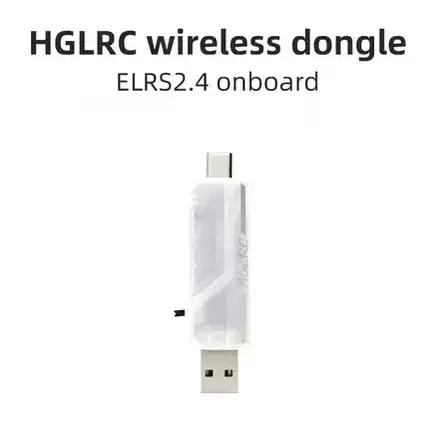

Dongle parameters:

  1. Built-in ELRS Maximum supported frequency: 250hz
  2. Receiving distance: more than 200m
  3. Binding method: Quickly power on and off three times to enter binding mode
  4. Interface: USB TYPE-C+USB TYPE-A double plug
  5. Working voltage: 5v
  6. ELRS firmware upgrade method: WIFI or USB plug
  7. ELRS firmware version: ELRS 3.0
  8. ELRS Firmware Name: HGLRC 2.4 GHz HGLRC Hermes 2.4GHz RX
  9. External receiver support protocol: only supports CRSF protocol
  10. Weight: 9.5g
  11. Size: 74mmx21mmx12.5mm

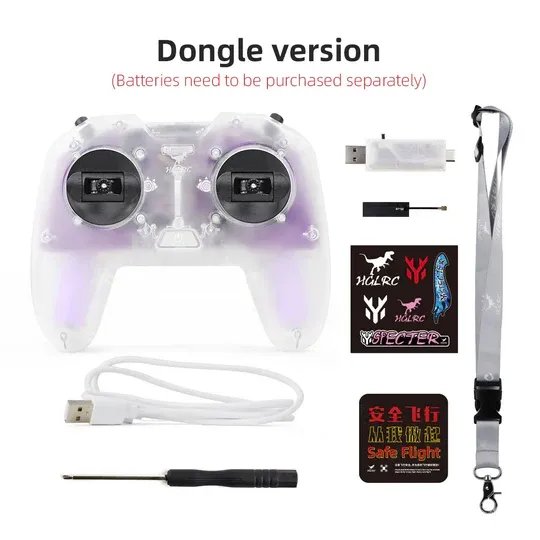

Package Includes:

1 x remote control

1 x remote control hanging strap

1 x USB-C data cable
