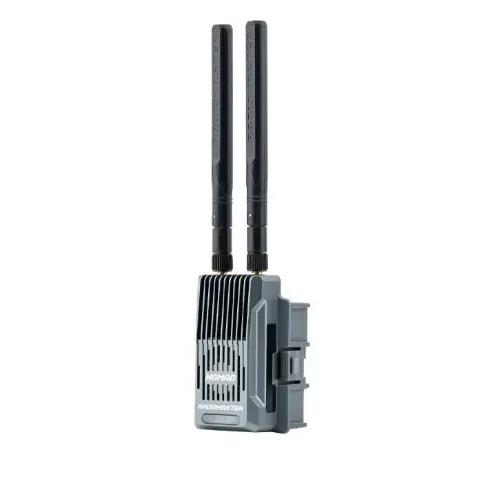

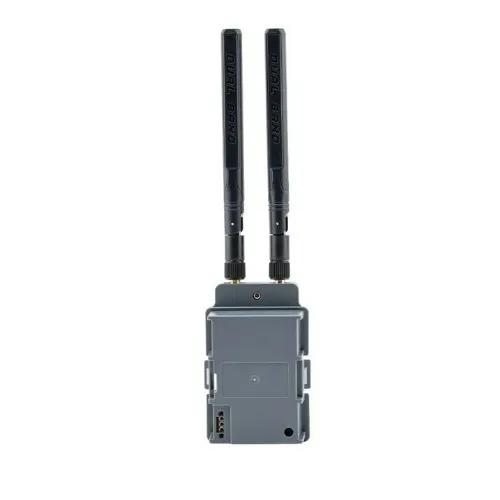

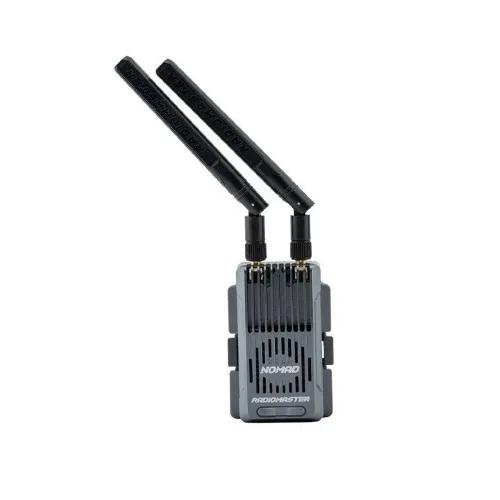

Radiomaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module

The RadioMaster Nomad sets a new standard for long-range ExpressLRS transmission. Built around dual 1-watt Semtech LR1121 transceivers, the Nomad operates simultaneously on 2.4 GHz and 868/900 MHz using advanced Gemini Xrossband technology, delivering exceptional link reliability, higher packet rates, and superior interference rejection in even the most demanding RF environments.

Designed for serious FPV pilots and long-range operators, the Nomad transmits redundant packets across both frequency bands, dramatically improving link stability and consistency. Full compatibility with all ExpressLRS receivers—single-band and dual-band— ensures seamless integration into existing setups while unlocking the latest ExpressLRS performance advancements.

High-power operation is supported by an integrated cooling system, allowing sustained 1-watt output without thermal throttling. A built-in XT30 power input (6–16.8 V) makes the Nomad easy to power in both portable and fixed installations. Visual feedback is provided by an RGB light strip, while Wi-Fi and Bluetooth connectivity simplify configuration and firmware updates.

With support for new ExpressLRS packet rates up to 500 Hz (and 1000 Hz support planned), along with micro and nano bay adapter compatibility, the Nomad is engineered to be a future-ready solution for next-generation ExpressLRS systems.

Features:

1. Gemini Xrossband Technology: Simultaneous packet transmission on 2.4 GHz and 868/900 MHz
2. Universal ELRS Compatibility: Works with all ExpressLRS receivers (single-band and dual-band)
3. High-Power RF Output: Twin Semtech LR1121 transceivers, 1 W each
4. High Packet Rates: Supports up to 500 Hz (1000 Hz upcoming)
5. Flexible Power Input: Built-in XT30 port, 6–16.8 V input range
6. Dual-MCU Architecture: ESP32 + ESP32-C3 for robust performance and connectivity
7. RGB Status Lighting: Clear visual feedback for operating status
8. Wireless Connectivity: Integrated Wi-Fi and Bluetooth
9. Enhanced Cooling System: Stable high-power operation
10. Module Bay Support: Compatible with micro and nano adapter bays

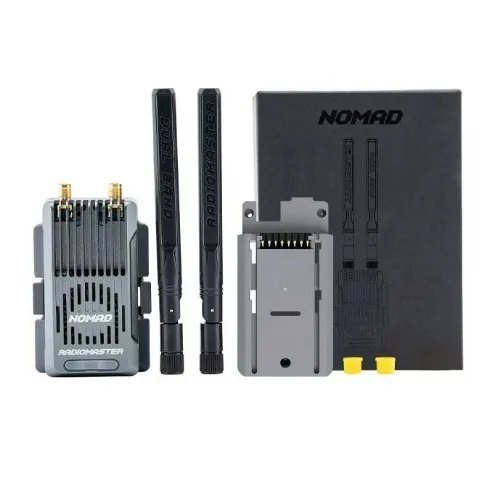

Package Includes:

1 X Radiomaster Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module
