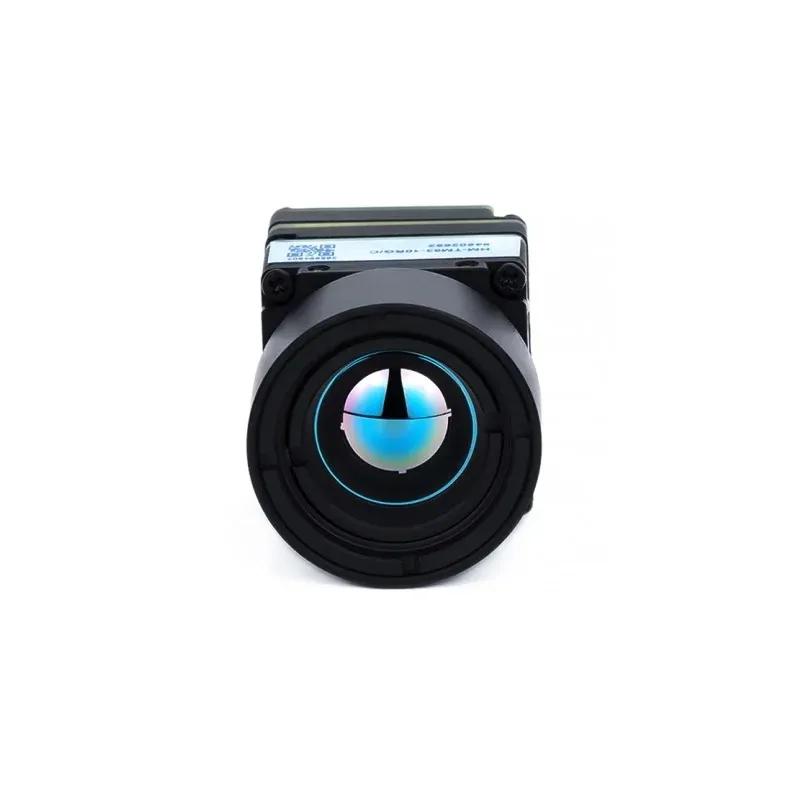

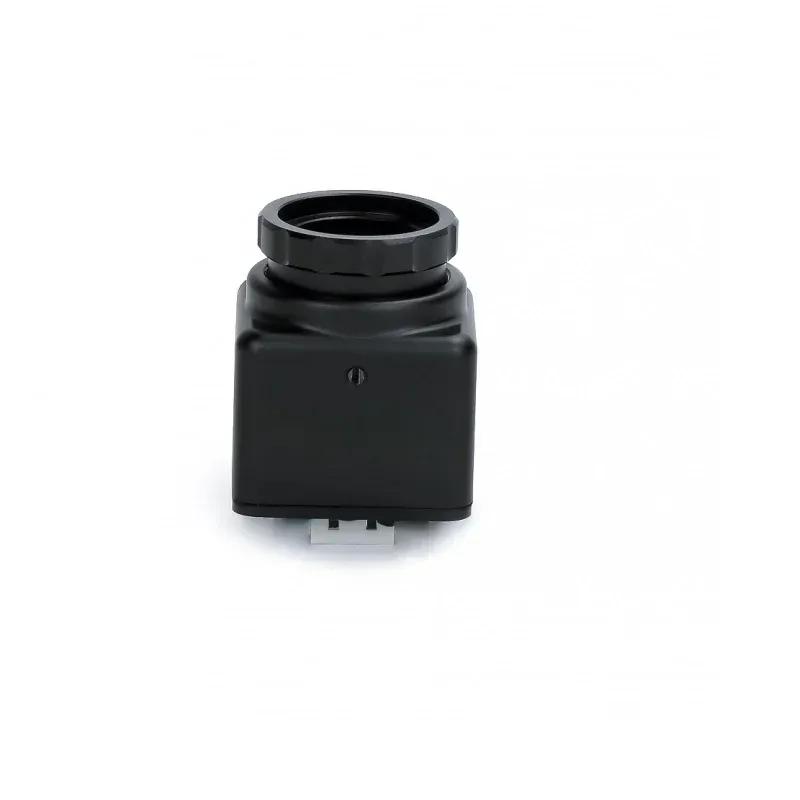

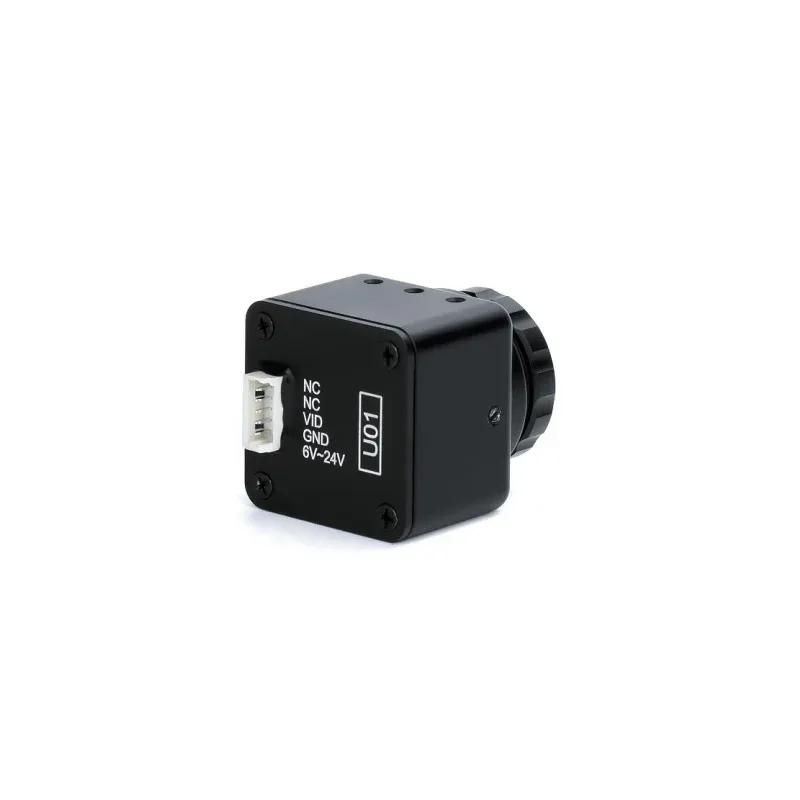

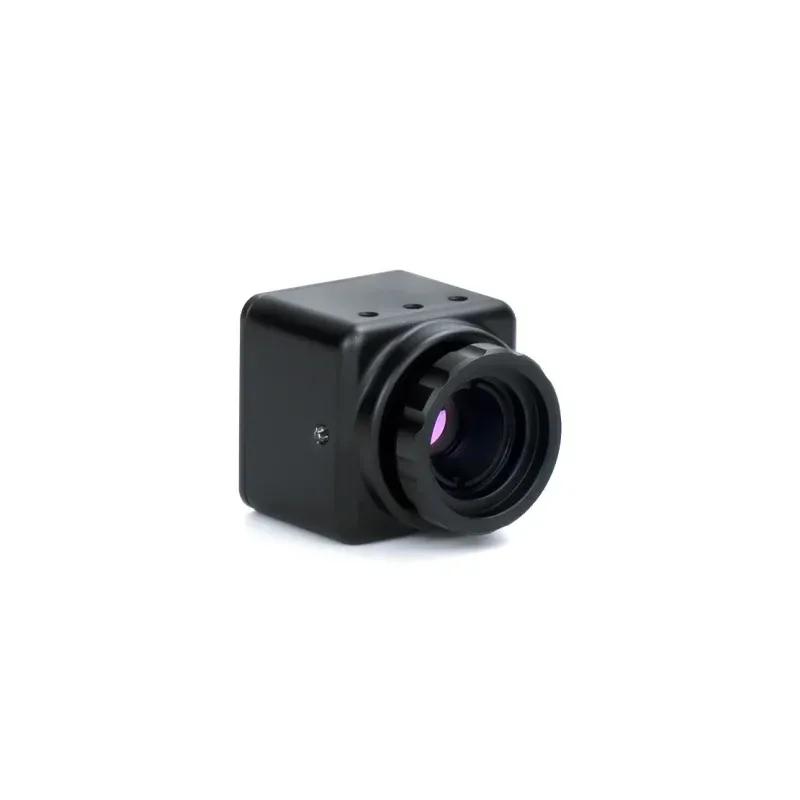

Axisflying High Resolution Thermal Imaging Camera For FPV Drone 256*192

The Axisflying Thermal Imaging Camera is designed specifically for FPV drones, providing high-resolution thermal imaging capabilities. With a resolution of 256*192 pixels, this camera is suitable for a variety of applications, including search and rescue operations, agricultural monitoring, building inspections, and more.

Features:

1. High Sensitivity Detector: Utilizes a vanadium oxide (VOX) uncooled detector for enhanced performance in thermal imaging.
2. Analog Output: Provides compatibility with a wide range of FPV systems through analog signal output.
3. Image Correction: Features automatic, manual, and background correction options to optimize image quality.
4. Compact and Lightweight: Weighing only 22 grams, it’s designed for easy integration into lightweight drones.
5. Versatile Applications: Suitable for various uses, including industrial inspections, agricultural monitoring, search and rescue, andenvironmental assessments.
6. User-Friendly Interface: The camera includes options for customizing settings and viewing thermal images in real-time.

Specifications:

1. Resolution: 256×192
2. Pixel Size: 12 µm
3. Spectral Response: 8~14 µm
4. Frame Rate: 25 Hz
5. Focus Mode: ManualOperating Voltage: 6V~24V
6. Power Consumption: 0.4W (6V)
7. Operating Temperature: -20°C to +50°C
8. Weight: 22 g
9. Dimensions: L24.0 × W24.0 × H27.9 mm

Applications:

1. Industrial Inspections: Detects heat anomalies in machinery.
2. Agricultural Monitoring: Assesses plant health and water stress.
3. Search and Rescue: Locates individuals in low visibility.
4. Building Inspections: Identifies insulation and energy loss.
5. Environmental Monitoring: Tracks temperature changes in ecosystems.

Package Includes:

1 x Axisflying Thermal Imaging Camera (256*192)

1 x Mounting accessories (if applicable)

1 x User manual and installation guide
