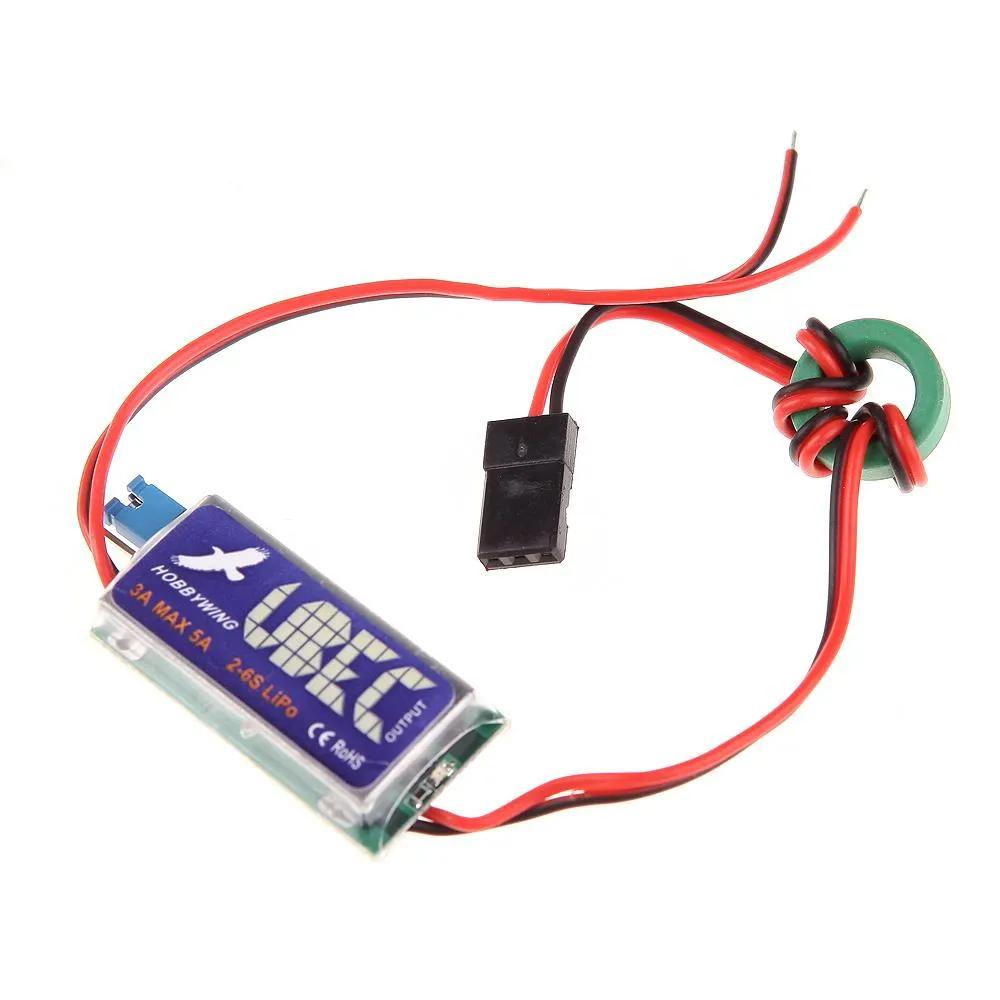

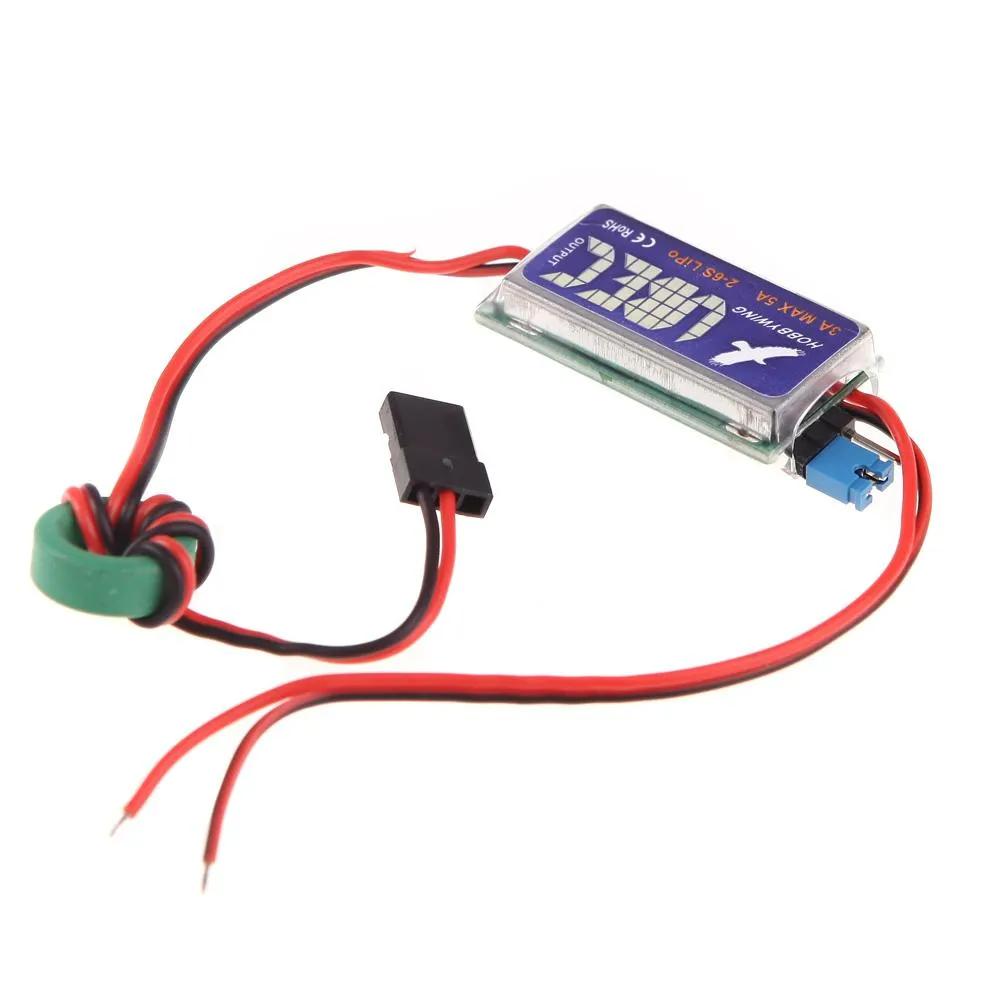

5V/6V 3A Switch-Mode Ultimate BEC – Voltage Regulator

This is 5V/6V 3A Switch-Mode Ultimate BEC – Voltage Regulator.

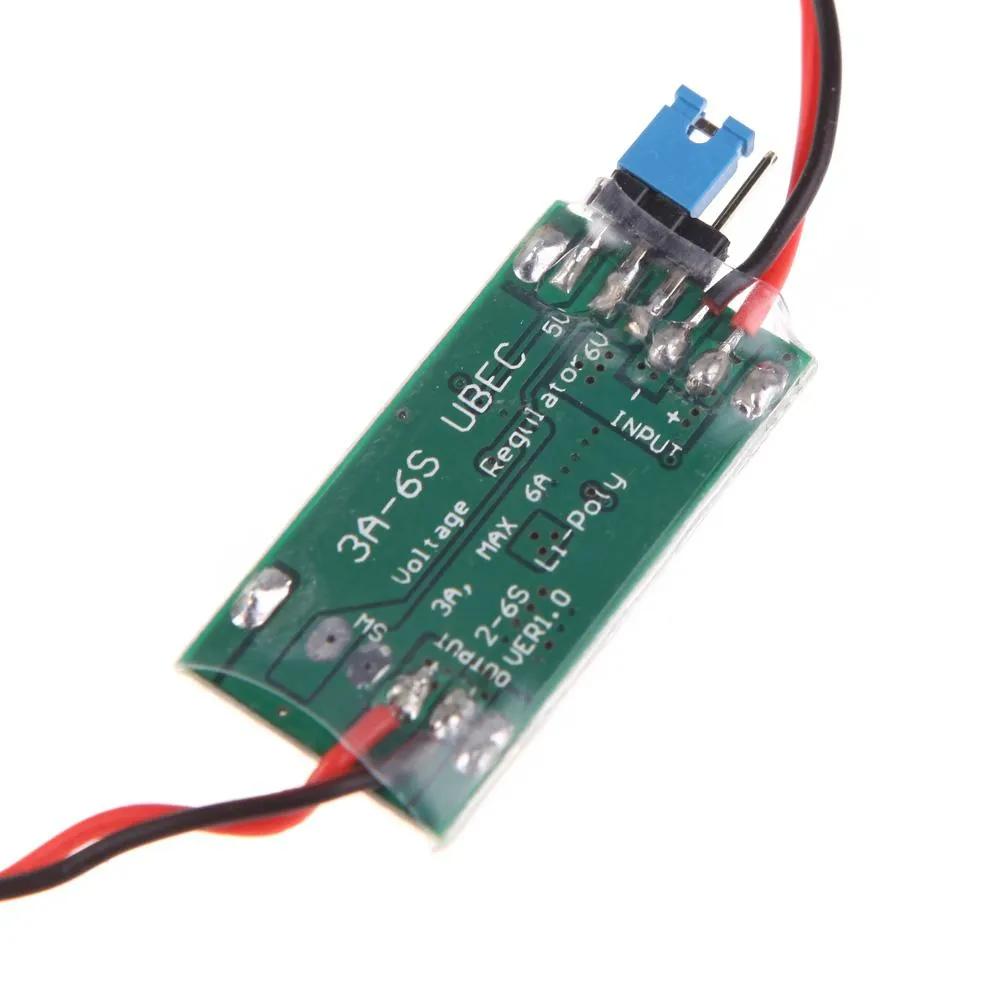

The module is designed with an advanced switch mode DC-DC regulator IC which eliminates the fear of overheating. It offers a powerful output with 5V and 3A.

A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce electromagnetic interference. Also, it has output short circuit protection which makes it ideal for RC applications.



Features :

1. Shows the working status with an indicator (LED), lights when the output is in the normal range
2. Output Voltage: 5V or 6V (Changeable with an output-voltage select switch)
3. Continuous output current: 3 Amps
4. Input: 5.5V-23V (2-6 cells lithium Poly.battery pack or 5-15 cells NiMH / NiCd battery)



Package Includes :

1 x Hobbywing 5V/6V 3A Switch-Mode Ultimate BEC – Voltage Regulator

A User Manual
