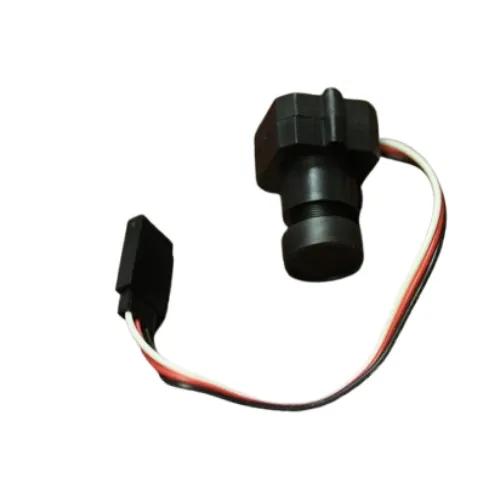

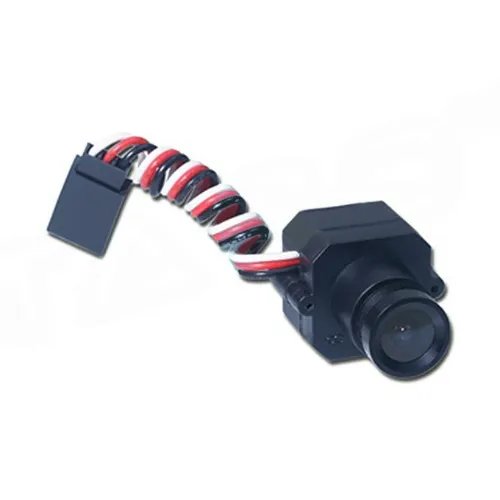

Tarot TL300MN 520TV 12V FPV HD Camera Wide Angle Lens NTSC for QAV250

The Tarot TL300MN is a high-definition FPV camera designed for UAV and drone applications, delivering 520TVL resolution for clear and detailed video transmission. It features a wide-angle lens for an expansive field of view, ensuring better situational awareness during flight. The NTSC format ensures smooth and real-time video output, making it ideal for FPV racing, aerial photography, and surveillance applications.

Features:

1. 520TVL Resolution: Provides crisp and clear video quality.
2. Wide-Angle Lens: Expands the field of view for better aerial imaging.
3. 12V Power Input: Ensures stable and efficient operation.
4. NTSC Video Format: Offers smooth and real-time video transmission.
5. Lightweight & Compact Design: Ideal for FPV drones and UAV applications.
6. TAROT 520TVL FPV lens is a 100 degree 2.8MM FD glass lens, applicable to Tarot mini 200/250/300 and FPV flight.
7. With built-in voltage regulator module, it can connect to 3S 11.1V battery.

Connection:

1. Red : DC12V power input
2. Black: power(-), video GND
3. White: video output
4. Resolution: 520TV lines
5. NTSC=720(H)×487(V)/ NTSC=720(H)×487(V)
6. Video System:NTSC
7. CCD: 1/3 inch HD Color CMOS
8. Video Output: 1.0Vp-p/75Ω
9. Power Consumption: 40MA ±10%
10. Operation Voltage: DC5-15V ±10%
11. Synchronization System: Internal Synchronization
12. SNR: > 50dB
13. Electronic Shutter: (N) 1 / 60-1 / 10000s, (P) 1 / 50-1 / 10000s
14. Operation Temperature: 0~45 degrees

Package Includes:

1 X Tarot TL300MN 520TV 12V FPV HD Camera Wide Angle Lens NTSC
