SparkFun SEN-21262 Temperature Sensor STTS22H Qwiic

SKU: 497213

760 (Inc GST)
999

SAVE 24%

Quantity:

Pre-Order

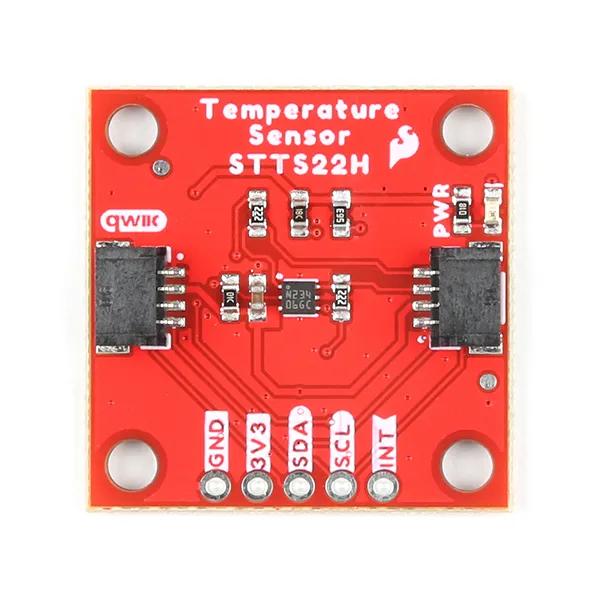

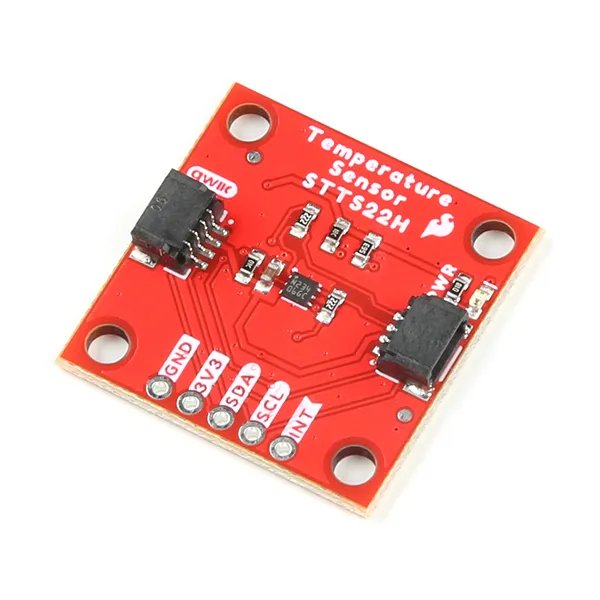

The SparkFun STTS22H Temperature Sensor is a Qwiic-enabled breakout board based on the ultralow-power, high-accuracy, digital temperature sensor from ST Microelectronics and housed in our standard Qwiic form factor. Thanks to its factory calibration the STTS22H offers high-end accuracy performance over the entire operating temperature range, reaching as low as ±0.5°C without requiring any further calibration at the application level.

The sensor operating mode is user-configurable and allows selecting between different ODRs (down to 1Hz) or the one-shot mode for battery saving. In one-shot mode, the sensor current consumption falls to 1.75µA. Peripheral addresses are also user-configurable and allow up to four different addresses to be specified by manipulating the jumpers on the back of the breakout. In addition, an interrupt pin is available to signal the application whenever the user-selectable high or low threshold has been exceeded.



Features:

  1. High-accuracy digital temperature sensor with ±0.5°C typical accuracy
  2. Ultra-low power consumption Ideal for battery-powered and remote sensing applications
  3. I²C interface via Qwiic connector no soldering required
  4. Selectable output data rates Up to 100HZ
  5. Operating temperature range: -40°C to +125°C
  6. Supports Low-Power and One-Shot modes
  7. Compact breakout board design using STMicroelectronics STTS22H sensor
  8. Compatible with 3.3V systems
  9. Fully supported by SparkFun Qwiic ecosystem



Package Includes:

1 X SparkFun SEN-21262 Temperature Sensor STTS22H Qwiic
