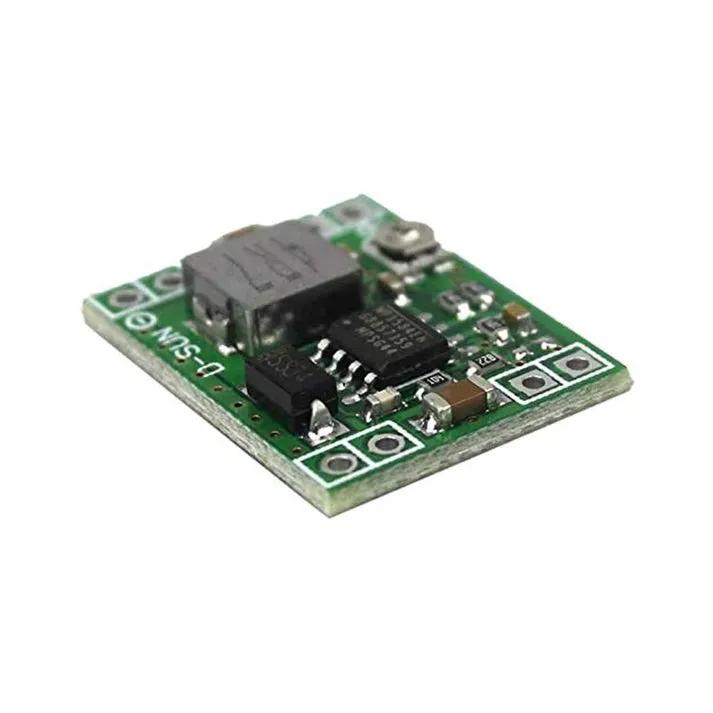

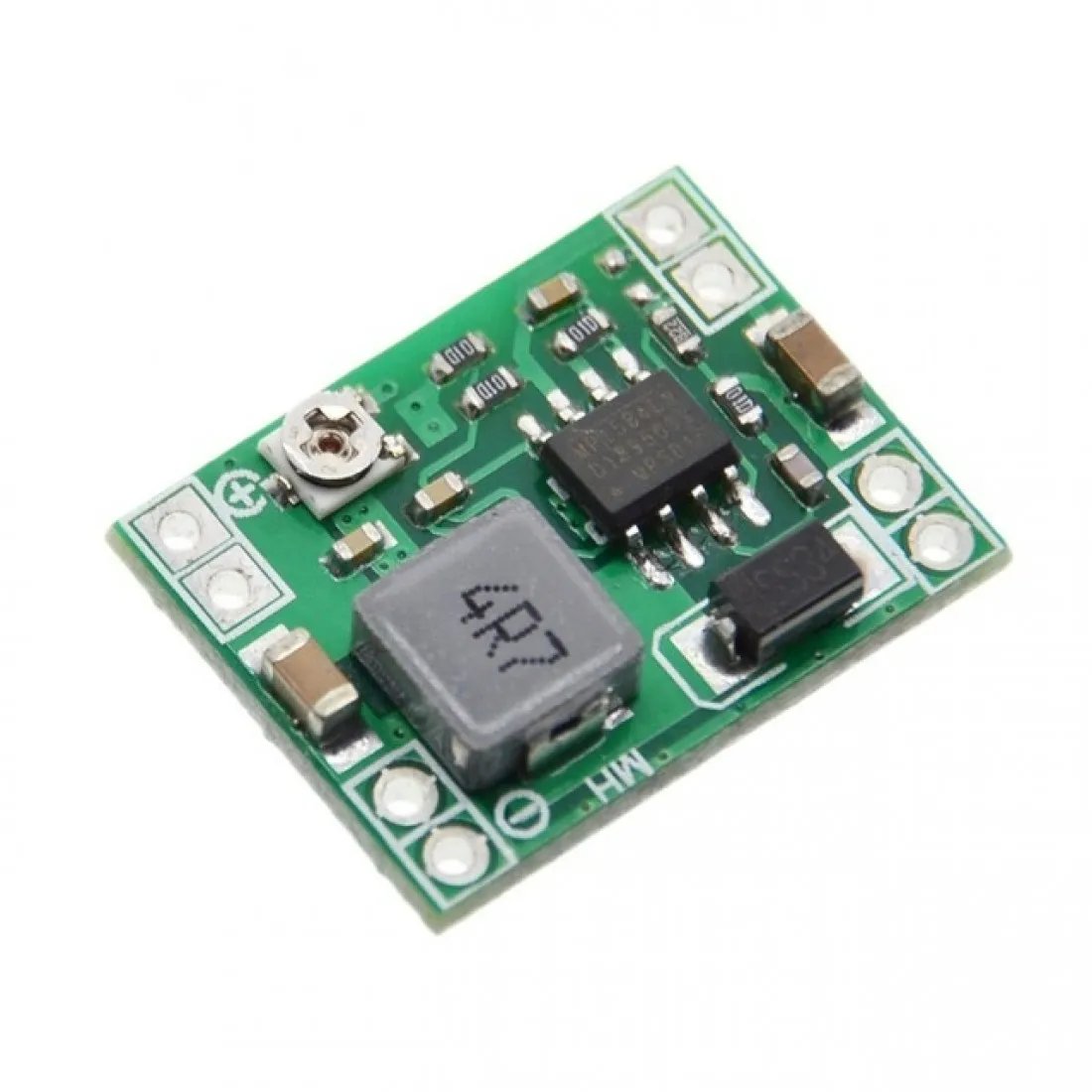

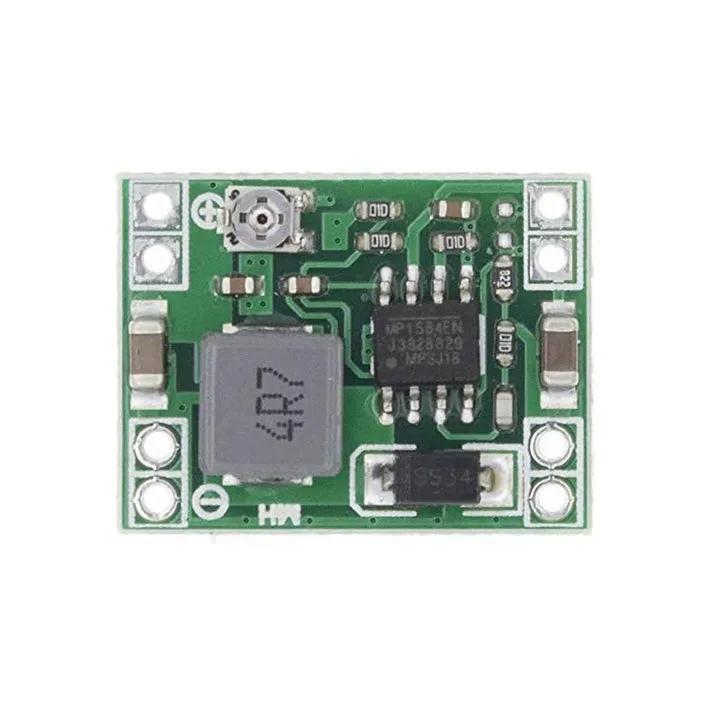

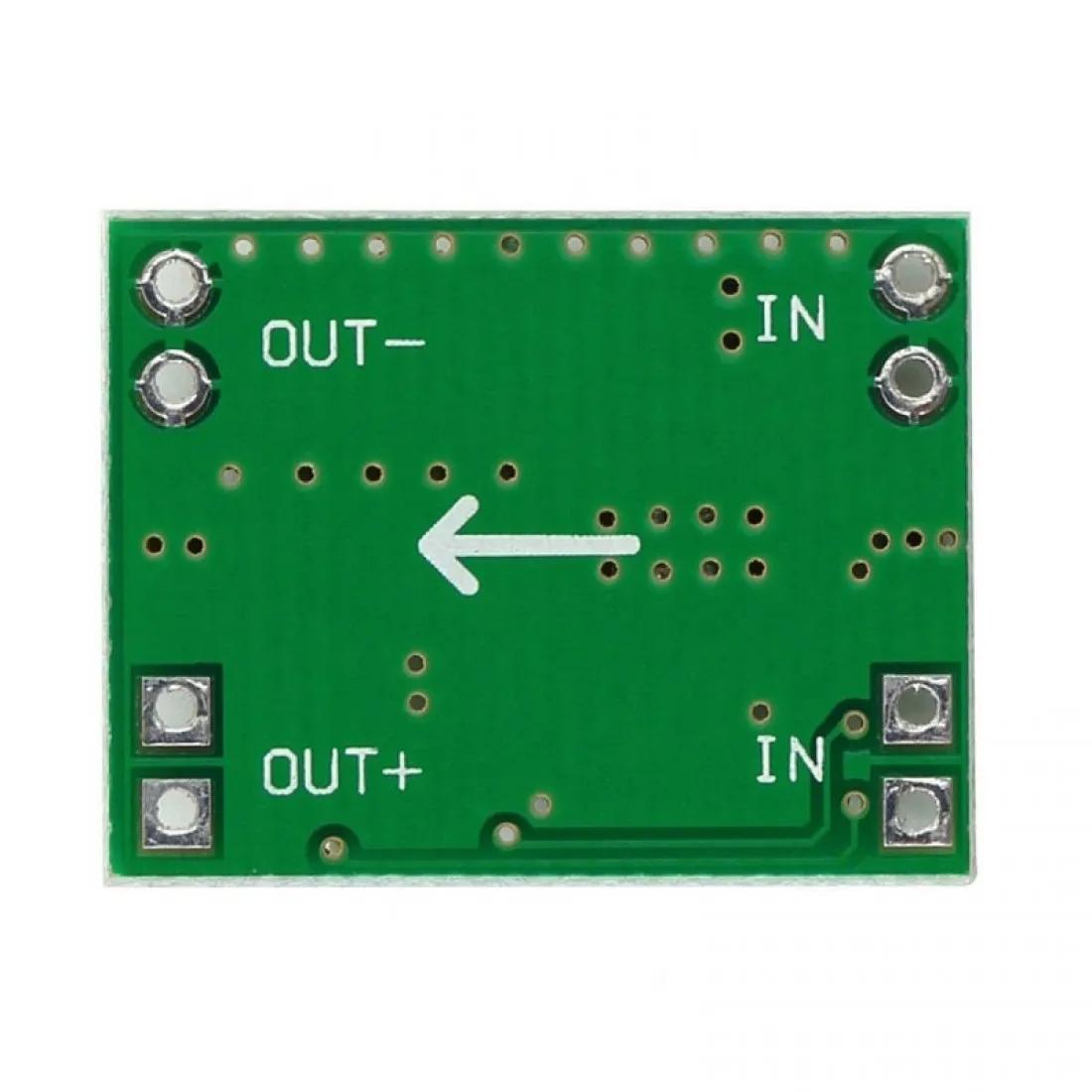

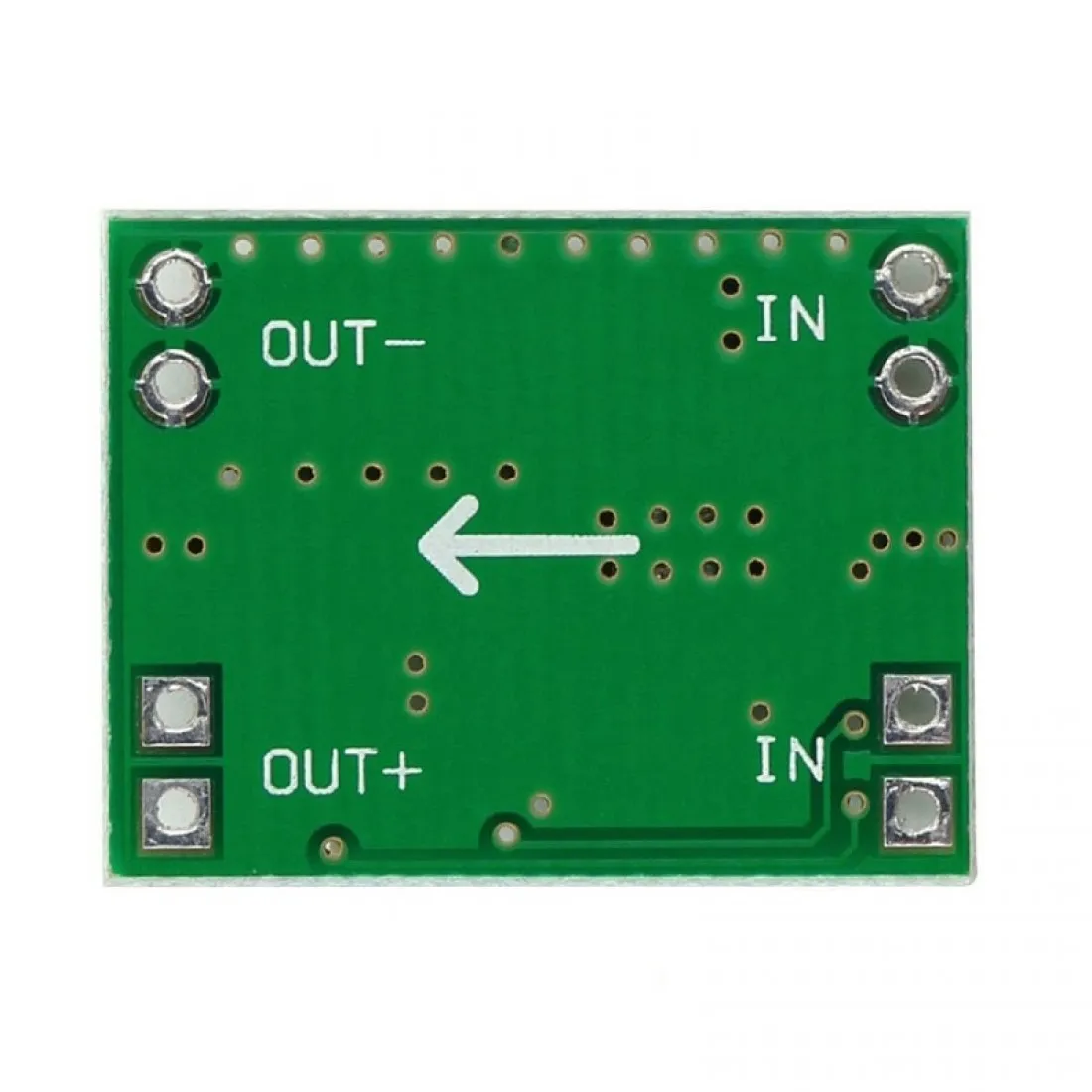

Mini MP1584EN DC-DC 3A Adjustable Step down Buck Converter Module

Mini MP1584EN DC-DC 3A Adjustable Step down Buck Converter Module is a mini DC-DC Step Down Module having input 4.5-28V to output 0.8-20V @ 3A capacity. MP1584EN Mini DC-DC 3A power step-down adjustable module. Buck Converter is usually use to convert 24V to 12V 9V 5V 3V as per application requirement.

It features soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at the insufficient supply voltage. Set voltage using a voltmeter and adjust to proper output voltage before installing in your device.

Features :

1. High-Efficiency Pulse Skipping Mode for Light Load
2. Ceramic Capacitor Stable
3. Internal Soft-Start
4. Internally Set Current Limit without a Current Sensing Resistor

Applications:

1. DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects
2. Robotics
3. Breadboard power supply
4. Manual speed adjustment of small DC motors
5. Power Supply for RC project planes, cars, helicopters
6. Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack
7. Receiver/servo power supply
8. Mobile equipment power supplies

Package Includes:

1. 1 x MP1584EN DC-DC Adjustable
