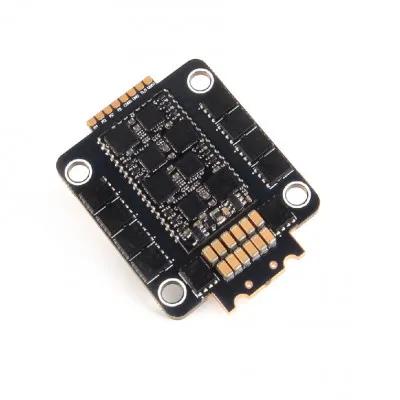

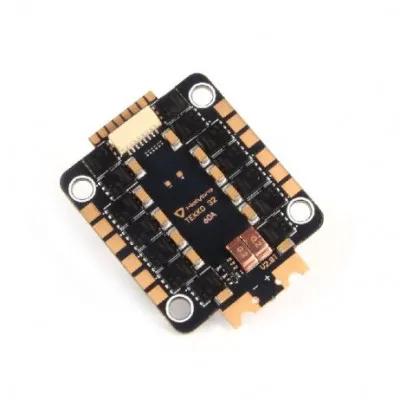

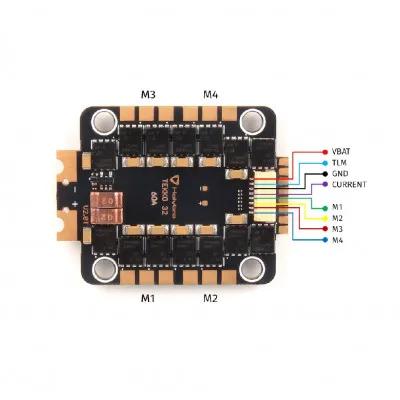

Holybro Tekko32 F4 4-in-1 60A ESC BLheli_32 Dshot 1200

The Tekko32 F4 4in1 60A ESC is a high-performance electronic speed controller. This compact 4-in-1 ESC is designed with a 30×30 mounting pattern and supports 3-6S LiPo batteries. It has all new High-quality MOSFETs with low internal resistance and low heat generation, ensuring efficient power delivery and a smooth flight experience while allowing the ESC to boast a continuous current of 60A. It has a separate drive and control circuit to broaden the current capability of the drive circuit while reducing electrical interference in the control circuit. With its cutting-edge BLHeli_32 firmware and 96K PWM frequency, enjoy lightning-fast response times and exceptional motor control.



Features:

1. All new High-quality MOSFETs with low internal resistance and low heat generation
2. Fast F4 MCU @150MHz (compared to F3 @108MHz & F0 @48MHz)
3. A separate drive and control circuit, reducing the electrical interference
4. Continuous Current Rating of 60 Amps
5. Supports DShot 150/300/600/1200/2400
6. Supports MultiShot/OneShot/Proshot/PWM etc.
7. ESC telemetry Supported
8. Onboard analog current sensor
9. BLHeli_32 firmware
10. 1000uf 35v capacitor included (highly recommended for 6s setup)
11. Amperage meter scale ratio: 120



Package Includes:

1x Tekko32 F4 4in1 60A ESC

4x M3 Anti-Vibration Silicone Grommet Insert

1x Electrolytic capacitor: 1000uF 35v

1x 8pin to 8pin 1mm pitch 65mm cable

1x 8pin to 8pin 1mm pitch 25mm cable
