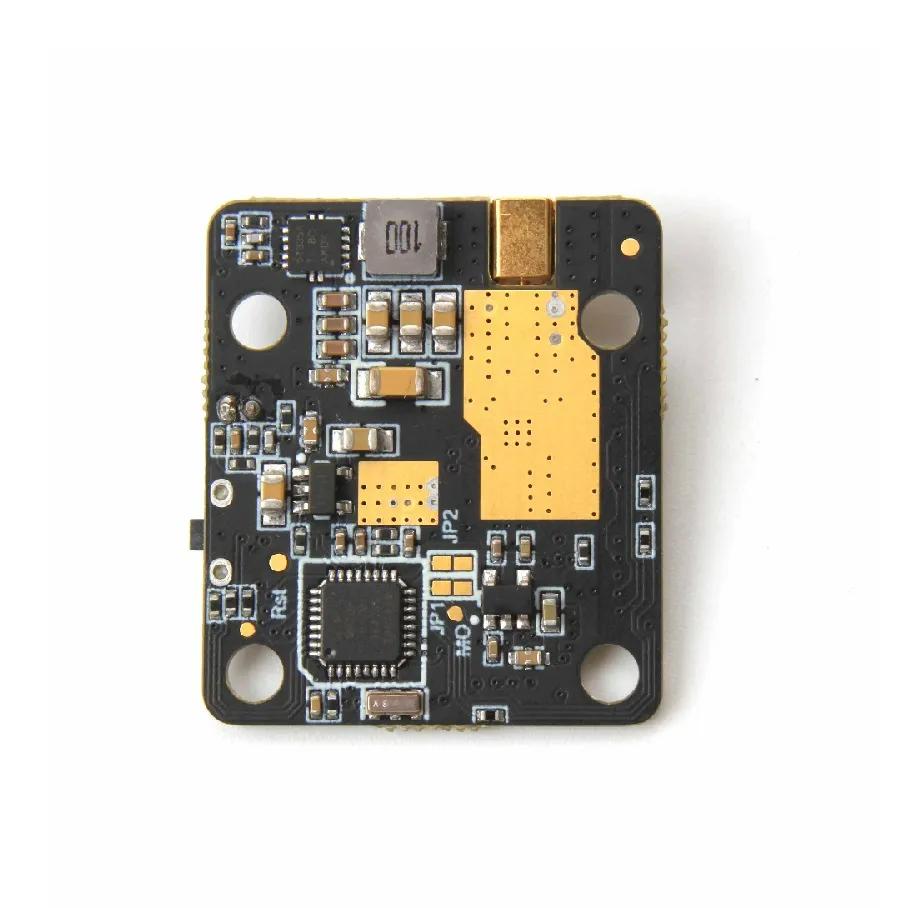

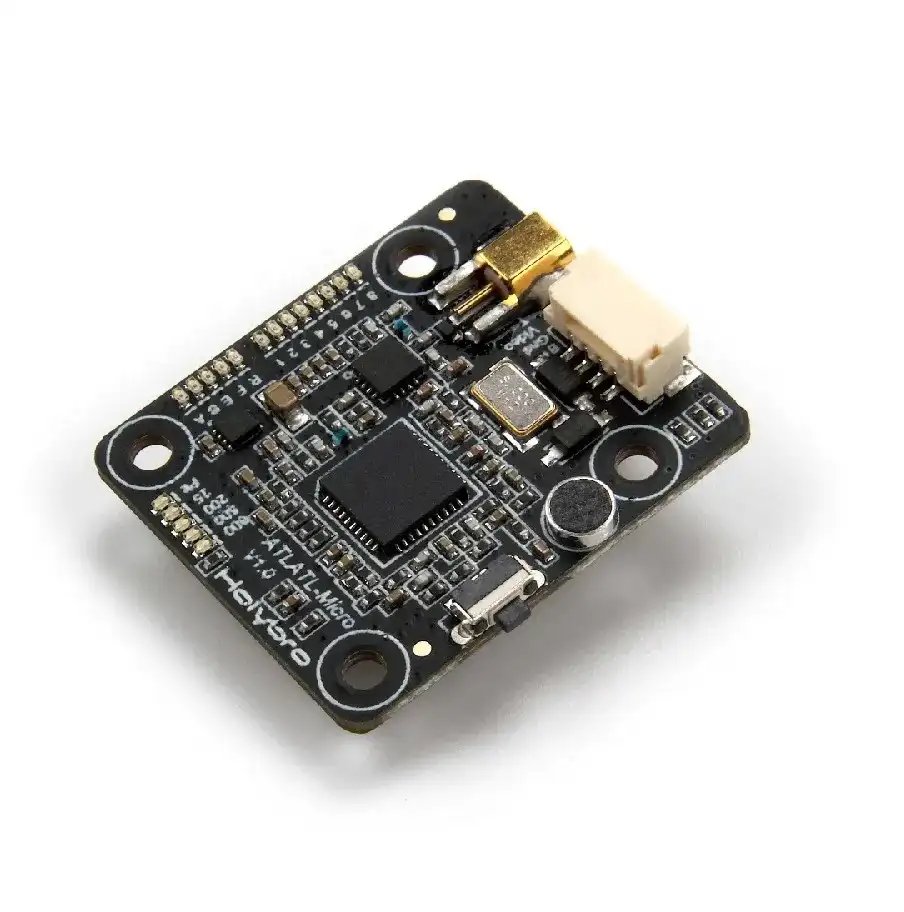

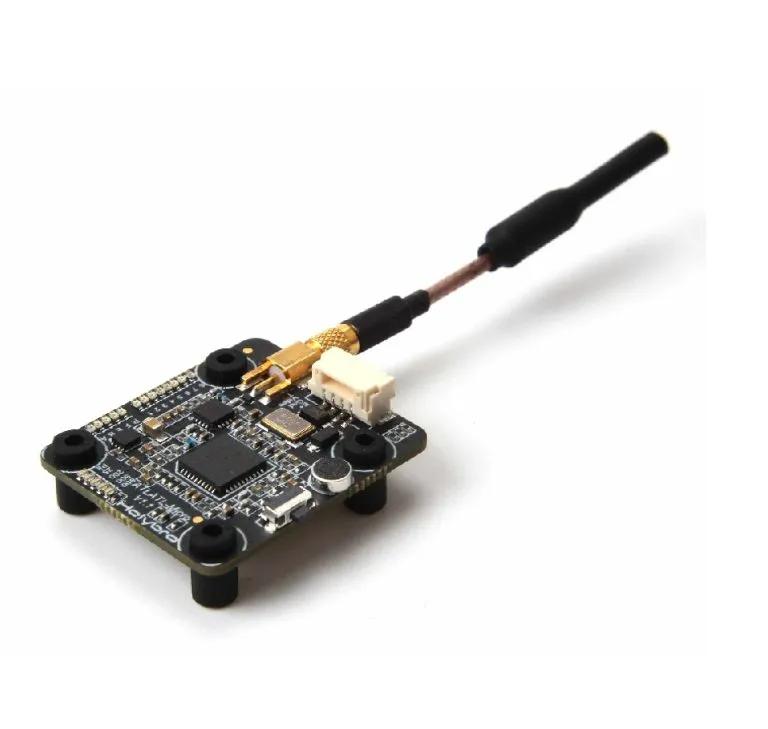

Holybro Atlatl HV micro (VTX & OSD)

The Atlatl HV V2 Video Transmitter offers seamless compatibility with major FPV receivers, supporting a standard 40-channel set with SmartAudio input for remote control. With a durable MMCX connector, LED indicators, and variable power from 25mW to 800mW, it’s versatile for racing and freestyle. The 0.5mW True Pit Mode enhances safety, and the built-in microphone adds an immersive touch. Its compact 26mm form factor ensures easy integration onto your flight controller stack, weighing only 3.6g.



Features:

1. Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
2. Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
3. SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
4. All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.
5. MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.
6. LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.
7. Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
8. 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
9. Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.
10. Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.

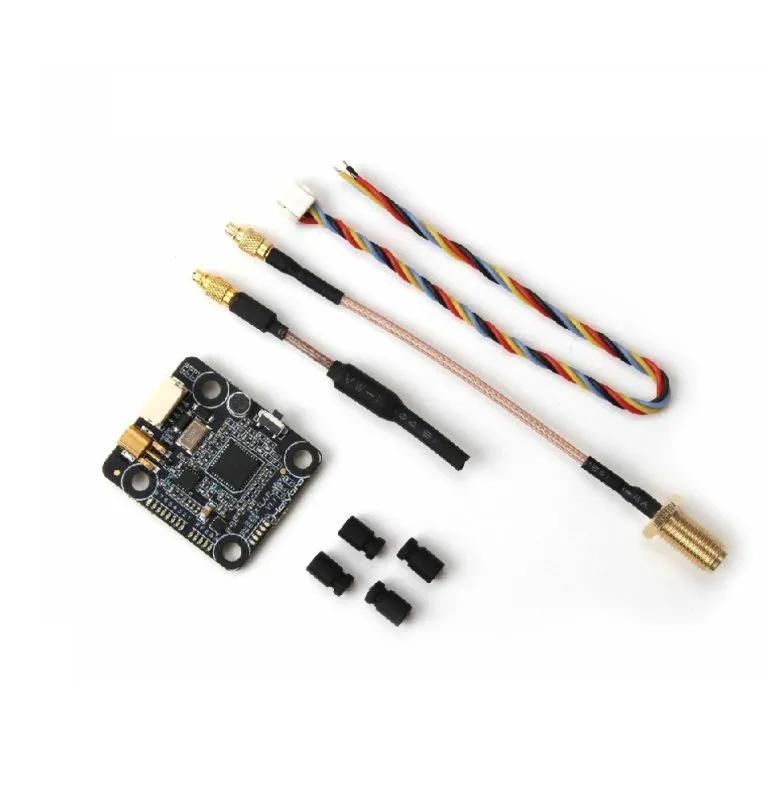

Package Includes:

1 x Holybro Atlatl HV micro (VTX & OSD)

1 x 80mm SMA–MMCX Cable

1 x 60mm Antenna

1 x 150mm 4pin JST GH wire

4 x M2 Anti-Vibration Silicone Grommet Insert
