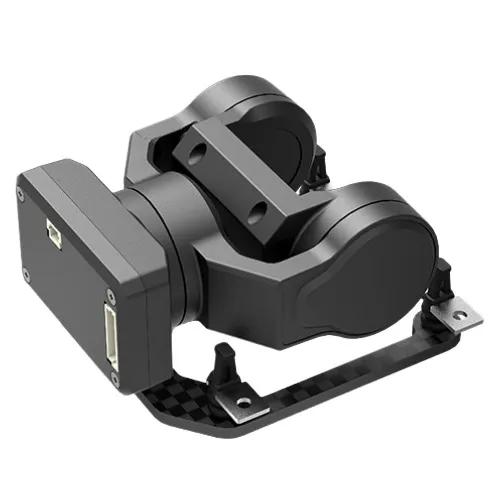

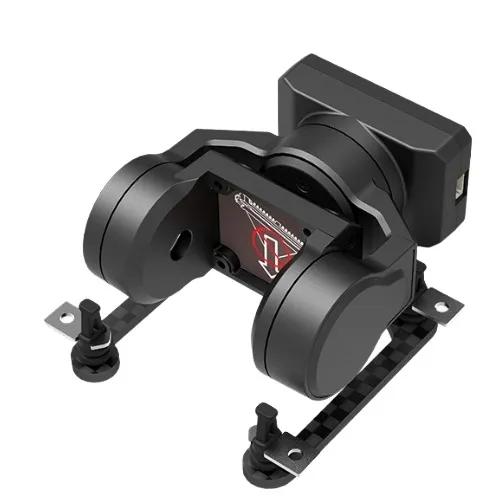

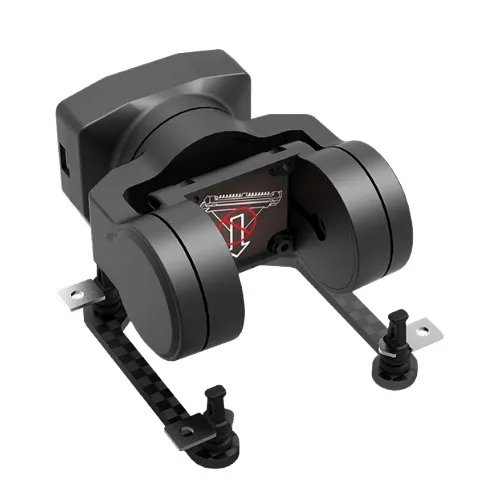

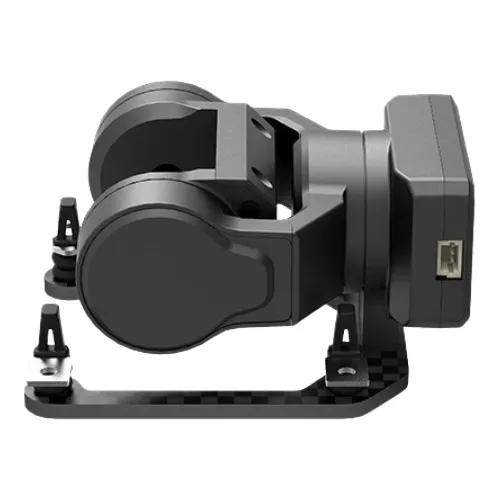

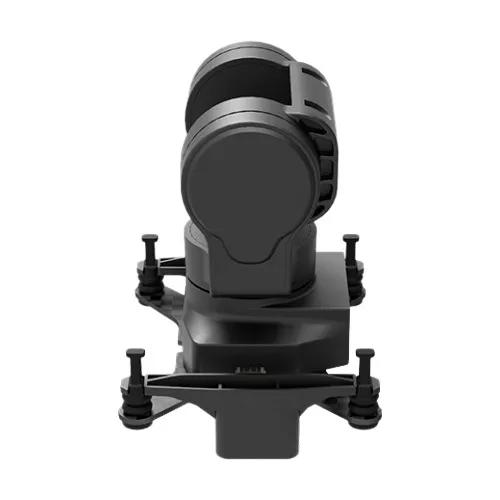

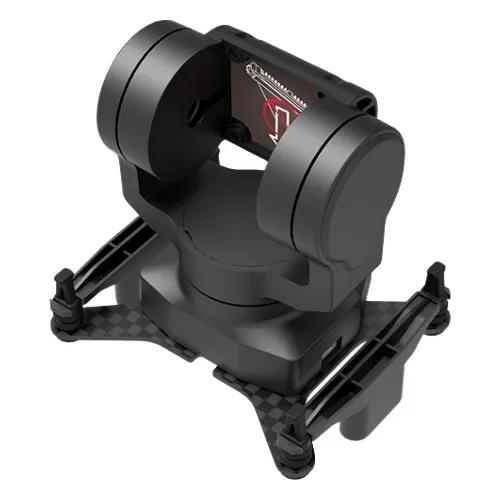

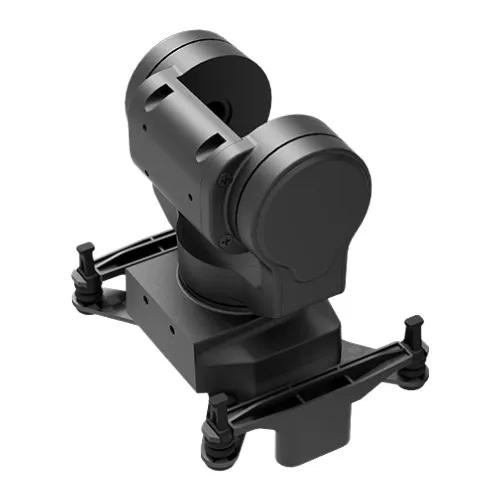

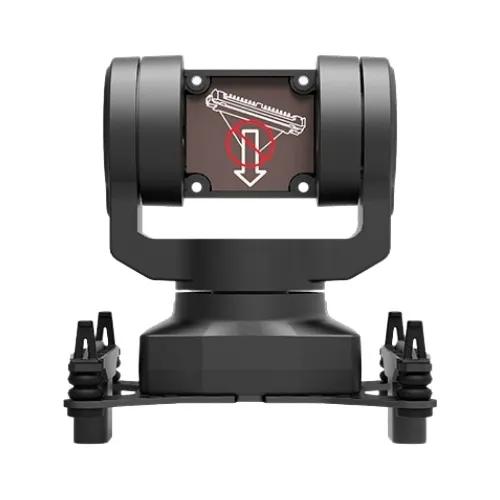

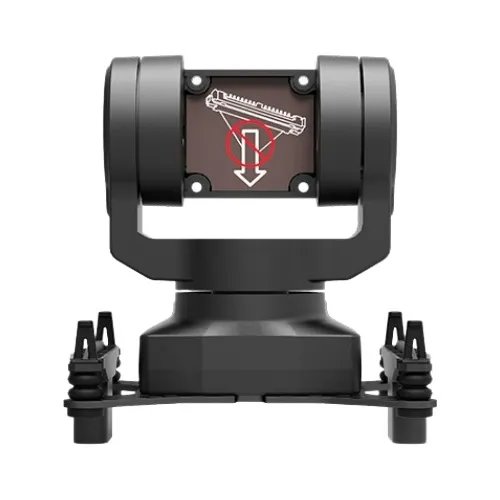

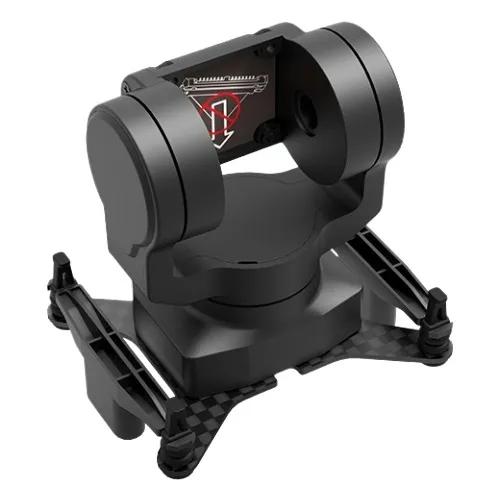

C-20D 2-Axis FPV Gimbal with Non-Orthogonal Stabilization FPV Camera

The C-20D is a compact and high-performance 2-axis FPV gimbal designed specifically for analog micro FPV cameras (19mm) used in drones, RC aircraft, and robotics platforms. Built with high-precision motors and mechanical stabilization, the gimbal actively compensates for vibrations and sudden movements, delivering smooth, stable, and immersive FPV video even during aggressive maneuvers. Stabilizing both pitch and roll axes, the C-20D ensures a steady horizon and controlled camera angle, making it ideal for smaller drones or applications where yaw stabilization is not required. The wide input voltage range (7.4V–26.4V / 2–6S) allows seamless integration with a variety of drone power systems.

The gimbal supports multiple control protocols including S.BUS, CRSF, PWM, and MAVLink, making it compatible with leading flight controllers and autopilot systems such as ArduPilot and PX4. It can also be connected directly to a head tracking system, enabling pilots to control the camera naturally through head movements for a truly immersive FPV experience. With a high-speed response of up to 1500°/s and a wide motion range (±120° pitch and ±60° roll), the C-20D offers fast and precise camera positioning. The system provides six operating modes, including FPV mode, pitch stabilization, and ortho-view (vertical downward) mode, along with three programmable preset modes for quick switching during flight.

The C-20D remains highly efficient, consuming less than 8W under load, making it perfect for lightweight UAV platforms where power efficiency is critical.

Features:

1. 2-Axis mechanical stabilization for smooth and stable FPV footage
2. Designed for analog micro FPV cameras (19mm)
3. Stabilizes both pitch and roll axes for improved video stability
4. Wide operating voltage range: 7.4V – 26.4V (2–6S LiPo support)
5. Supports multiple control protocols: S.BUS, CRSF, PWM, and MAVLink
6. Compatible with ArduPilot and PX4 flight controller systems
7. Direct head tracker support for immersive FPV control
8. Six selectable operating modes for different flight scenarios
9. Includes FPV mode, pitch stabilization mode, and ortho-view (vertical downward) mod
10. Three programmable preset camera positions for quick switching
11. Adjustable sensitivity for customized response to drone movements
12. Wide camera movement range: ±120° pitch and ±60° roll
13. High-speed camera rotation up to 1500° per second
14. Low power consumption with maximum usage under 8W
15. Flexible installation with camera mounting facing upward or downward
16. High-torque motors for effective vibration reduction
17. Compact and lightweight design suitable for small drones and RC models
18. Ideal for FPV drones, UAV platforms, and RC aircraft applications

Package Includes:

1 X C-20D 2-Axis FPV Gimbal with Non-Orthogonal Stabilization FPV Camera
