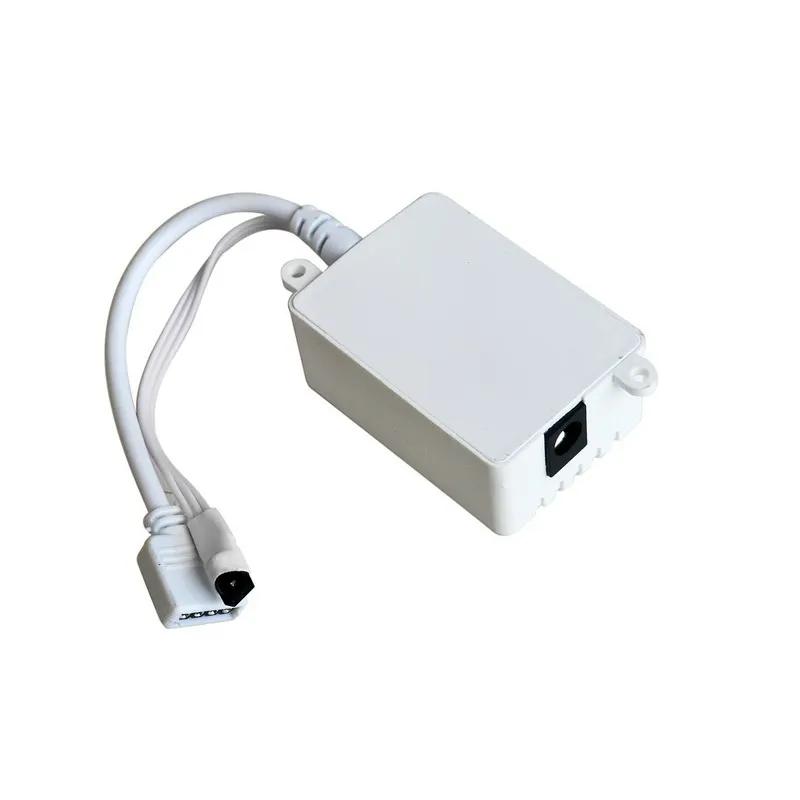

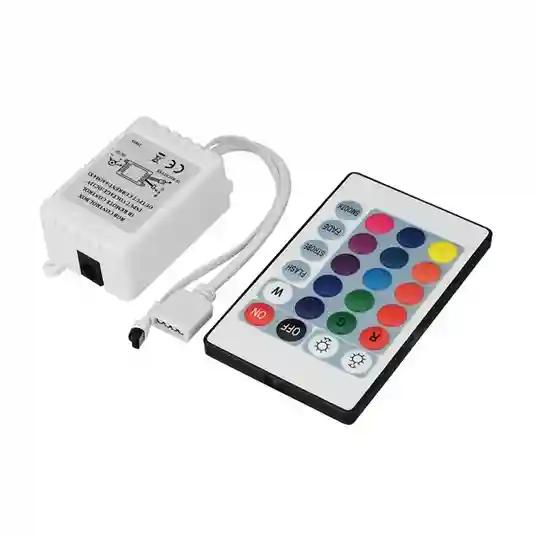

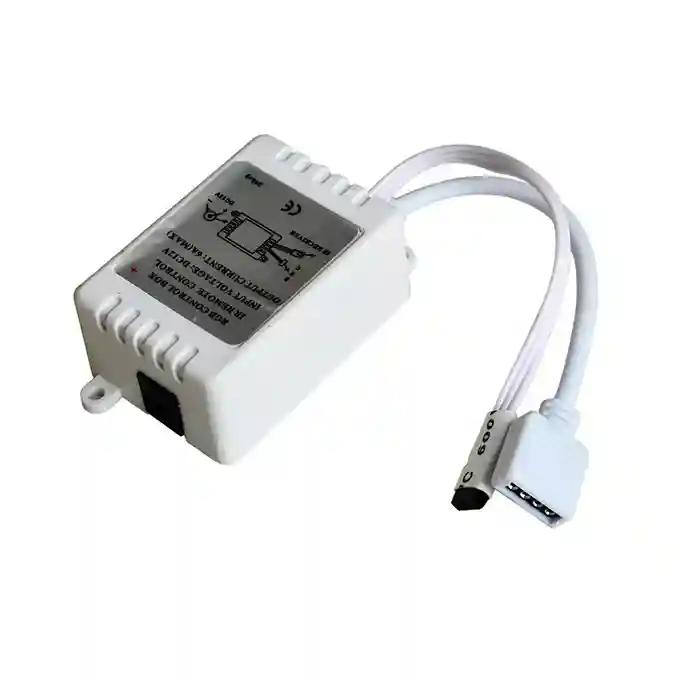

12V 5050 RGB LED Strip Controller box with 24 Key IR Remote Control

This RGB LED Light Strip Driver box operates on a 12V DC supply, featuring a DC Female port and a 4-pin female output connector that can be directly connected to the RGB strip. It features an IR Remote Controller with 24 Keys that allows you to set it according to your requirements or to hide the controller in systematic decorations.

The LED Light Strip Driver can operate at up to 2A/CH current, which means you can run 5-meter RGB strips easily on this controller. Using the IR Remote, you can change the differential pattern of RGB functions, Brightness Adjustments, and Blink frequency adjustments.

Note: Length of Strip depends upon the adapter you use to power the box. For 1-meter strip, 12V 2A power supply is needed

Button use:

R: Color change to Red

G: Color change to Green

B: Color change to Blue

W: Color change to White

Use: 12V 5050 RGB SMD LED strip lights

Note: Length of Strip depends upon the adapter you use to power the box. For 1-meter strip, 12V 2A power supply is needed

Features:

1. Plug and Play Easy to connect
2. Flexible IR Receiver Probe
3. Multi-Function IR Remote control
4. 16 colors, 5 light pattern: Static/Flash/Strobe/Fade-change/RGB Smooth-change.
5. 16-classes Static Mode Dim Control
6. 16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change.
7. Connecting mode: common anode
8. Material: plastic
9. Output: Three CMOS Drain-open Output

Package Includes:

1 x 12V 5050 RGB LED Strip Controller box

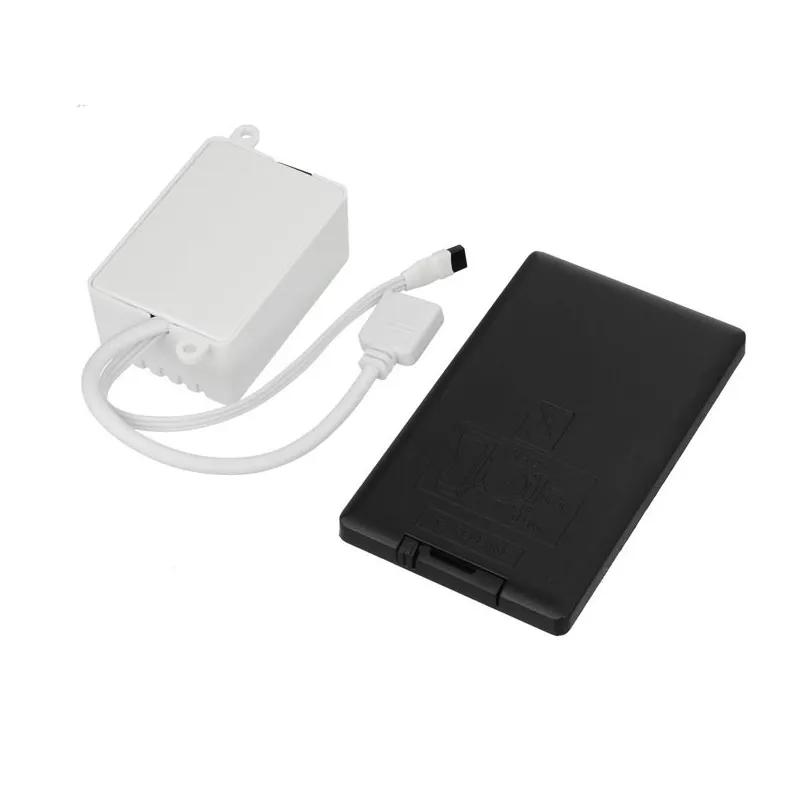

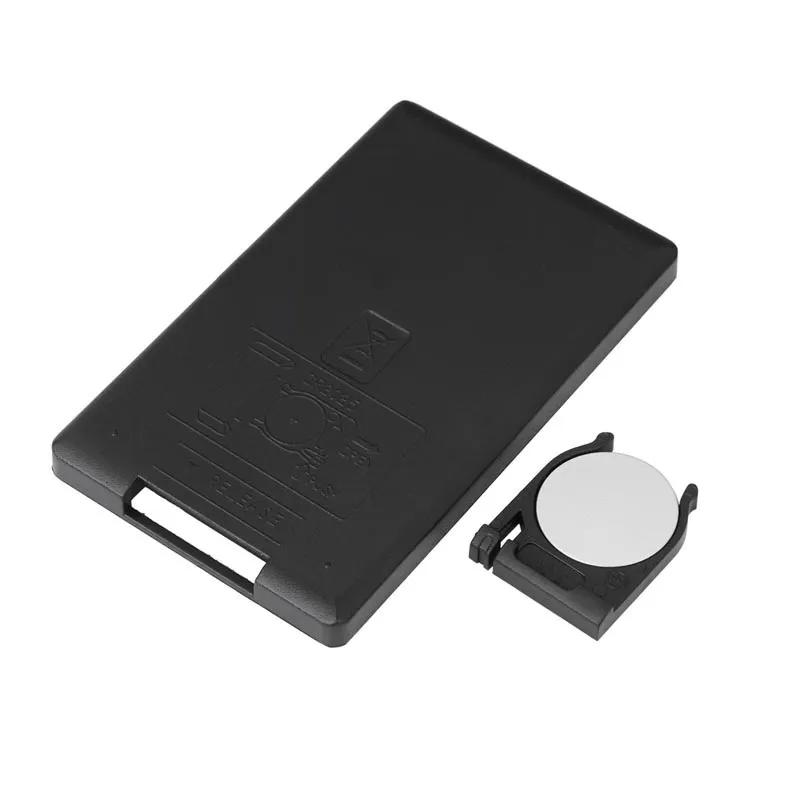

1 x 24 Key IR Remote Control (Battery Included)
