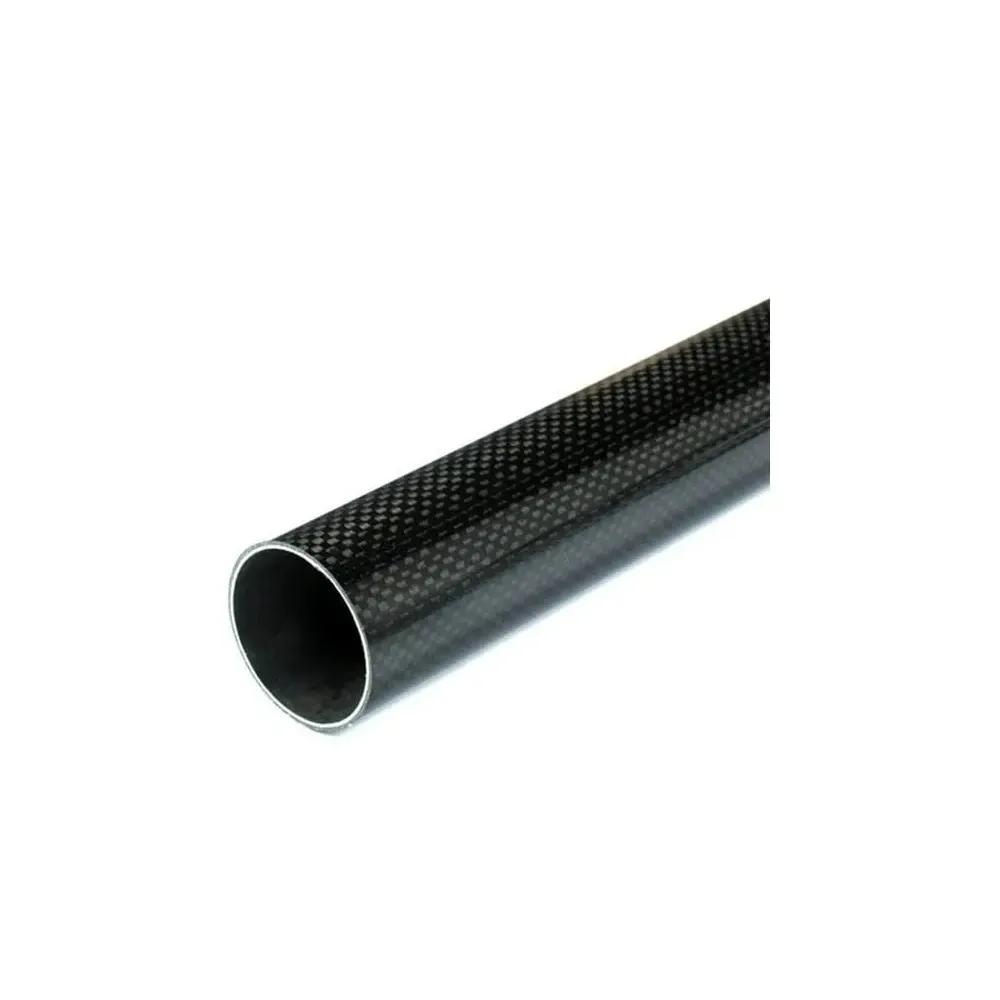

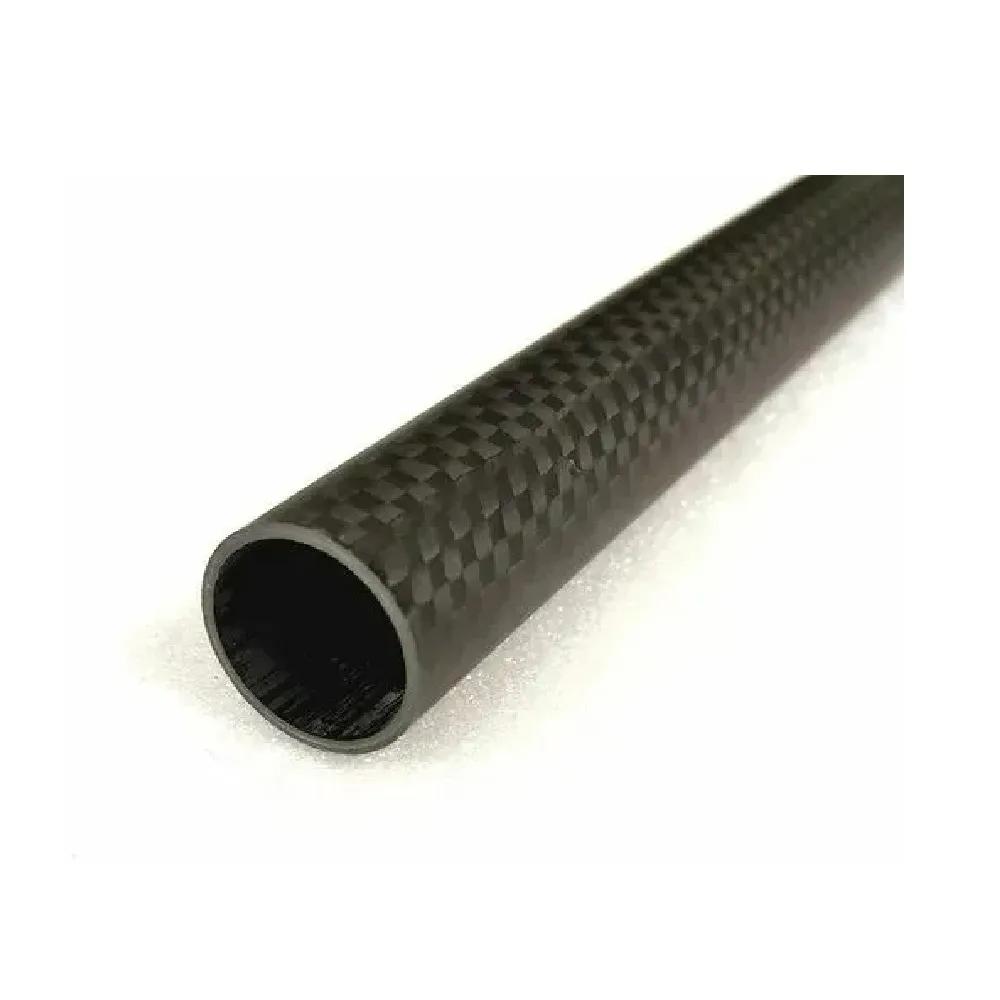

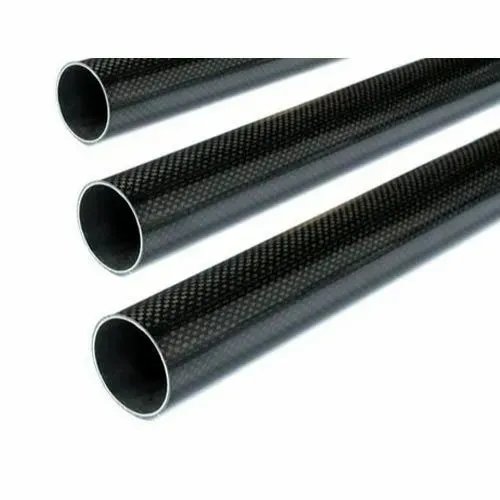

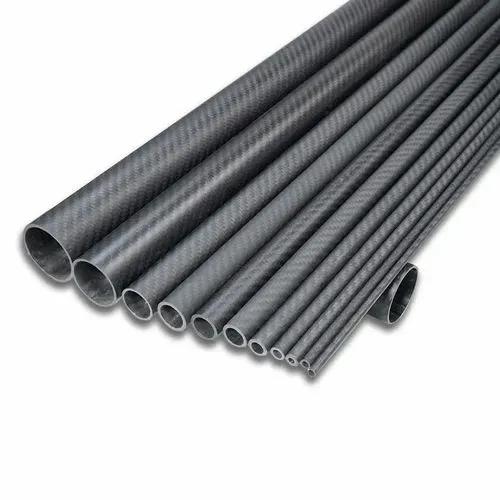

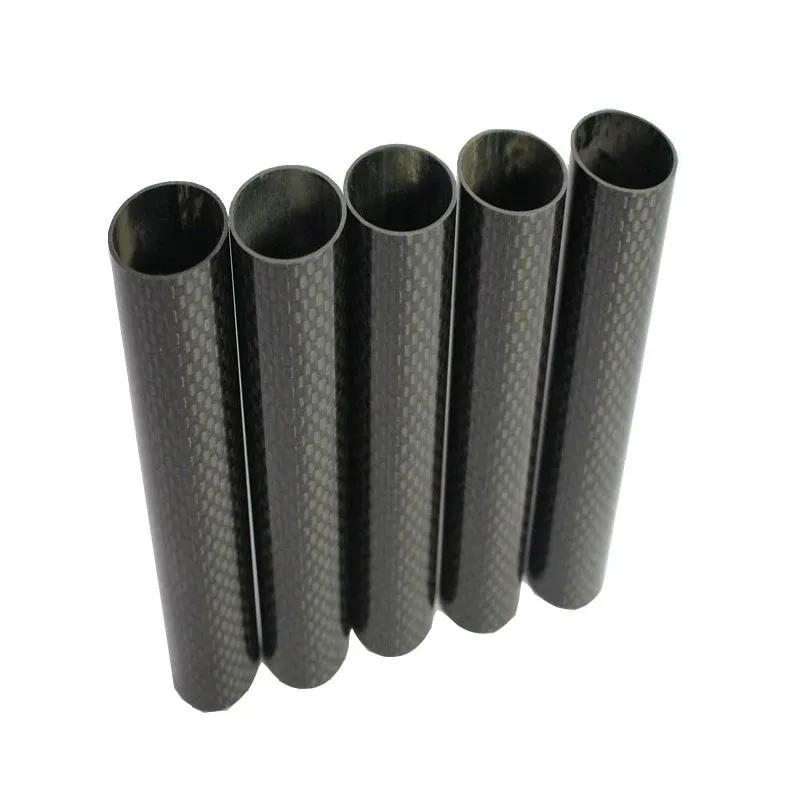

12 X 10 X 1000 mm Carbon Fiber Tube Thickness 1mm

Our Carbon Fiber Tube is engineered for high strength and low weight, making it ideal for a variety of applications. Manufactured from premium-grade carbon fiber, these tubes provide superior stiffness and resistance to wear, ensuring durability in demanding environments. Whether you're into robotics, drone building, or structural applications, this carbon fiber tube delivers outstanding performance with precision and reliability.

Carbon fibre tube can be used to replace aluminium or steel tubes in a wide range of projects. The Carbon fibre tube of the same weight as an aluminium or steel tube can be much stronger and lighter. This 16mm roll wrapped carbon fibre tube is manufactured predominantly using high modulus (T700) unidirectional prepreg carbon fibre oriented to provide maximum strength in the lateral axis.

The use of unidirectional fibres and maximum strength in the lateral axis does mean that the tube is not strong across its diameter as it is along its length so should be used in such a way as to avoid unnecessary crushing forces across the tube.

The prepreg carbon fibre is first laid up around a mandrel in multiple layers. Once the reinforcement is in place it is spiral-wrapped with heat-shrink tape before the whole assembly is oven cured.

Features:

Tube Thickness 1mm

Made of Carbon Fiber material

High Strength

Stable dimension and UV resistant

High Corrosion Resistance

Electrical & Thermal Non-Conductivity

Package Includes:

1 x Carbon Fibre Tube (Hollow) 12mm(OD) * 10mm(ID) * 1000mm(L)
