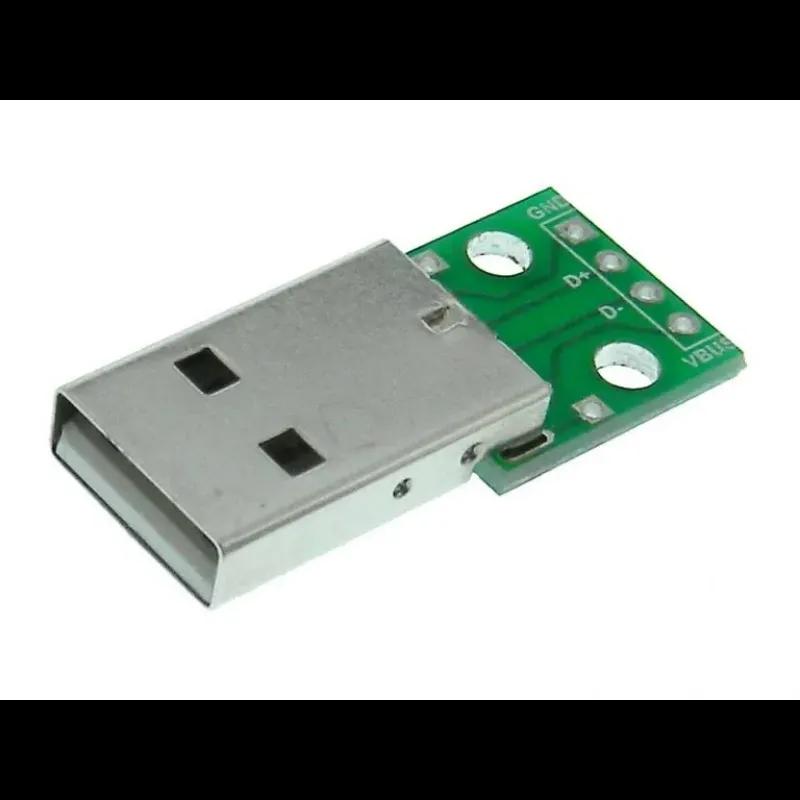

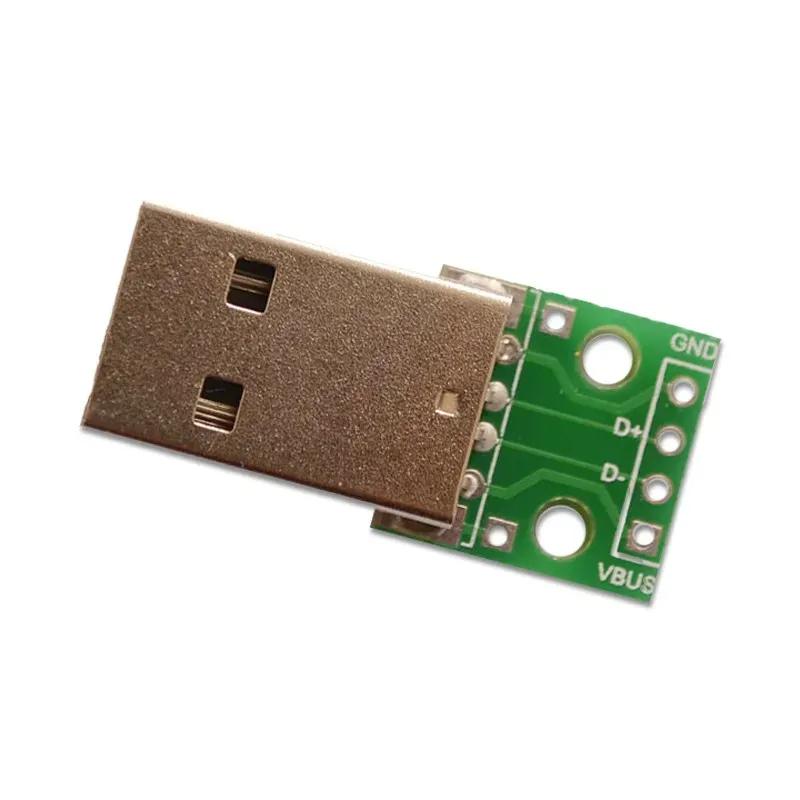

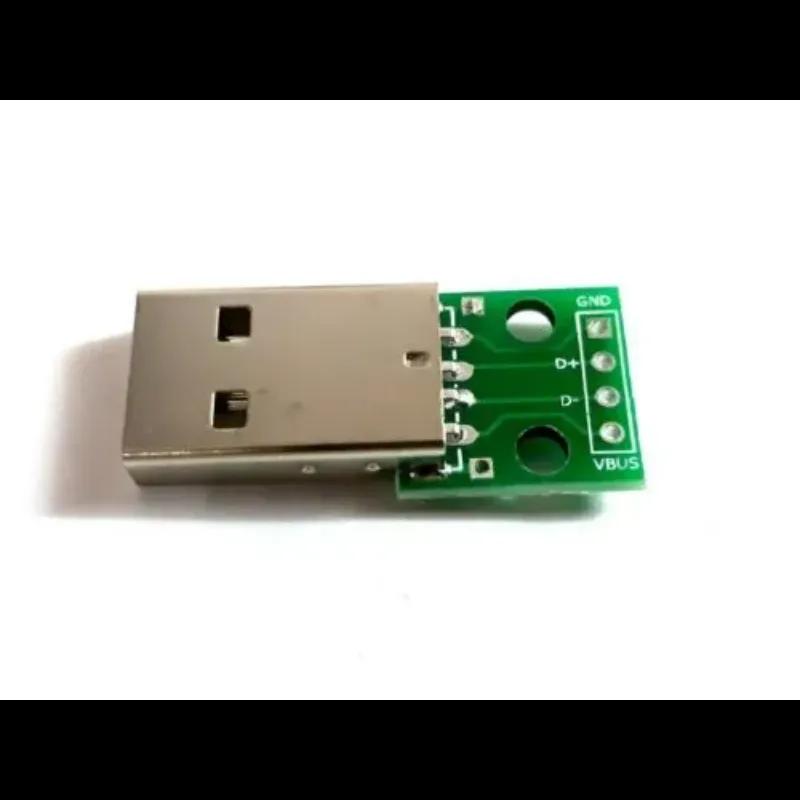

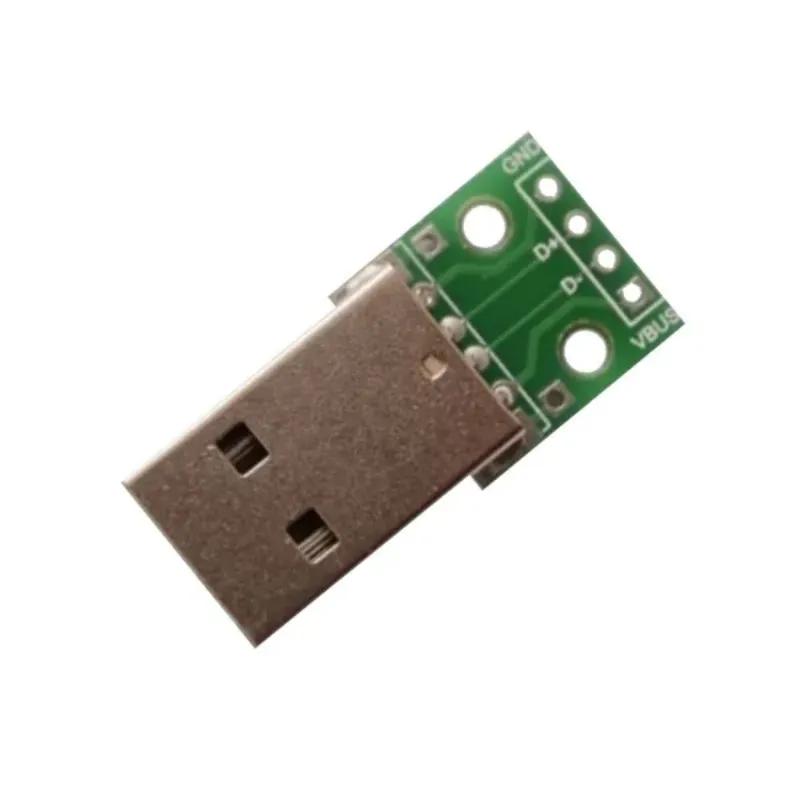

USB Type A Breakout Board – Male

USB is a de facto connector widely used in many consumer devices for power or data interface. It has become so popular that you can find compatible cables easily.

If you want to add a standard type A USB male plug to your project, this breakout board is for you. As simple as it is, this board breaks out all 4 pins of the USB connector into more manageable 2.54mm pitch soldering holes. You can then solder a 4-pin header to plug into a breadboard or solder wires directly to the holes.

The board measures 15mm x 15mm not including the connector. All connections are a label on the PCB. There are two M2.5 mounting holes for you to mount this breakout board.

Features:

– Easily connects to any standard USB Type-A female port on computers, chargers, or USB hubs.

– VBUS (5V), D-, D+, and GND clearly labeled and accessible via 0.1" (2.54mm) header pins.

– Ideal for breadboard experiments, DIY electronics, USB power access, or signal communication.

– High-quality PCB with proper trace spacing and solder pads for easy wire or header attachment.

– Small form factor for integration into compact projects or enclosures.

– Ready to use out of the box – no drivers or setup needed for power or basic USB signal breakout.

– DIY USB power supplies, data sniffing, USB device testing, Arduino/Raspberry Pi projects.

Package Includes:

1 x USB Type A Breakout Board – Male
