Tarot Pixhawk TL3401-03 12S Flying Hall Current Voltmeter 200A High Voltage

The Tarot Pixhawk TL3401-03 Hall Current Voltmeter is a high-precision power monitoring module designed for 12S drone power systems. It accurately measures current and voltage up to 200A, providing real-time data to flight controllers like Pixhawk for optimal power management. Using a non-contact Hall sensor, it ensures reliable and interference-free current detection, making it ideal for high-voltage UAV applications. The series-in current meter requires the circuit to be tested to be disconnected from the circuit and a high precision high power voltage divider resistor to be tested in series. This method will add at least 2 or more solder joints to the current circuit, and the contact resistance of the solder joints will heat up and the dissipation of the detection resistance will heat up. In the current circuit often tens of amperes, are a huge safety hazard, the use of Hall sensors can effectively eliminate this hidden danger.

Features:

1. Supports up to 200A, suitable for 12S power systems.
2. Non-contact measurement ensures high accuracy and safety.
3. Provides precise power data to the flight controller.
4. Eliminates signal noise for stable and reliable readings.
5. Seamless integration for accurate telemetry data.
6. Optimized for UAVs requiring high-power monitoring.

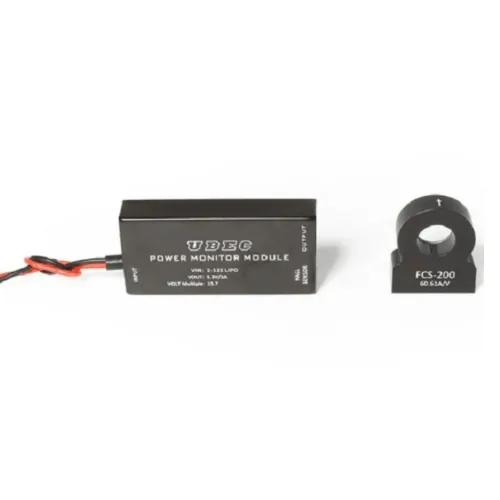

7. This Hall current and voltage meter is designed with separate main module and Hall sensor.

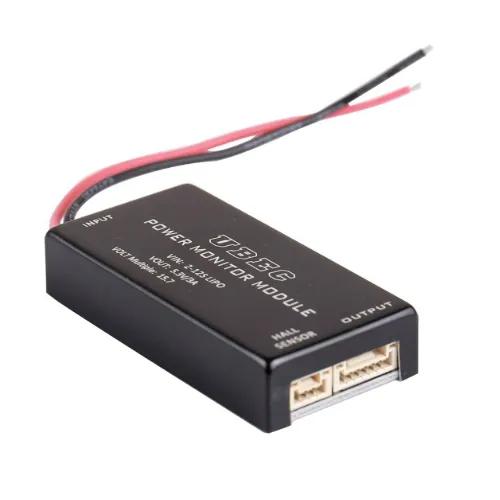

8. Main module provides UBEC 5.3V power supply and high precision resistor 1/15.7 voltage divider output to detect input supply voltage function.
9. The sensor is responsible for non-contact sensing of the current in the circuit to be measured.
10. Hall sensor with built-in digital processing circuit and built-in reference

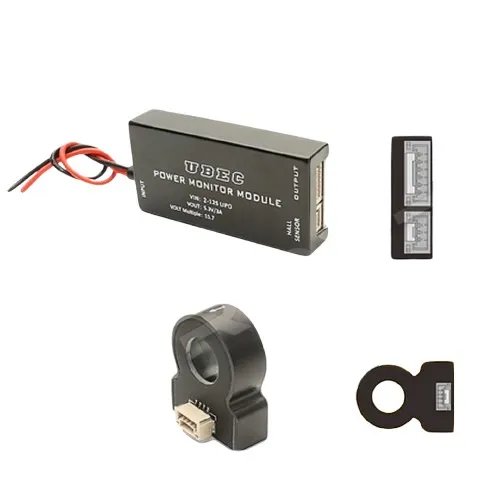

Package Includes:

1 X UBEC main module

1 X Hall sensor

1 X UBEC-Hall sensor connection cable

1 X UBEC-Pixhawk flight control connection cable(ZH1.25 interface/GHS1.25 locking interface/Hex interface)/three options
