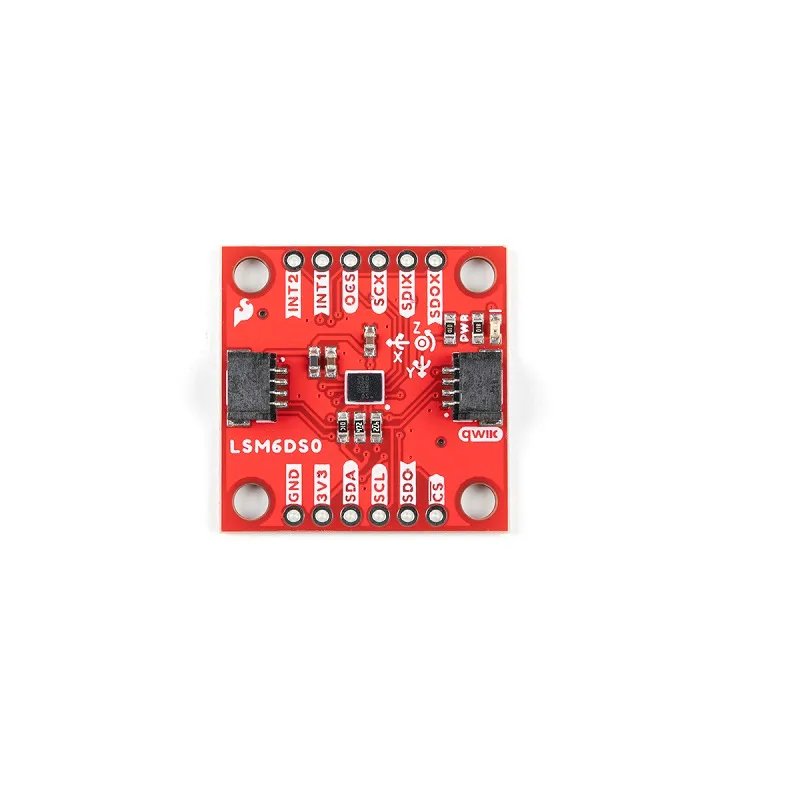

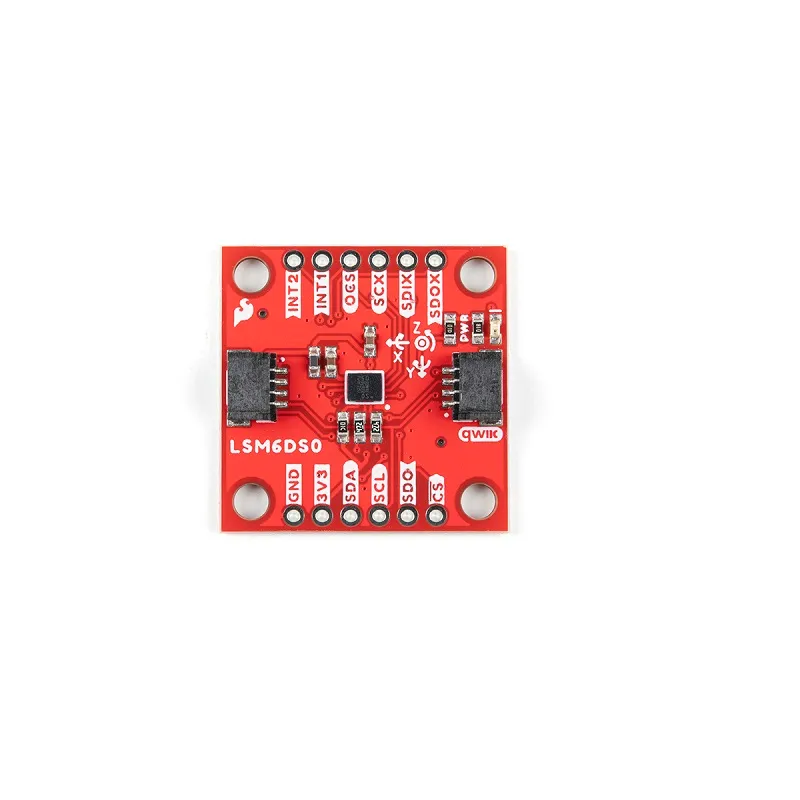

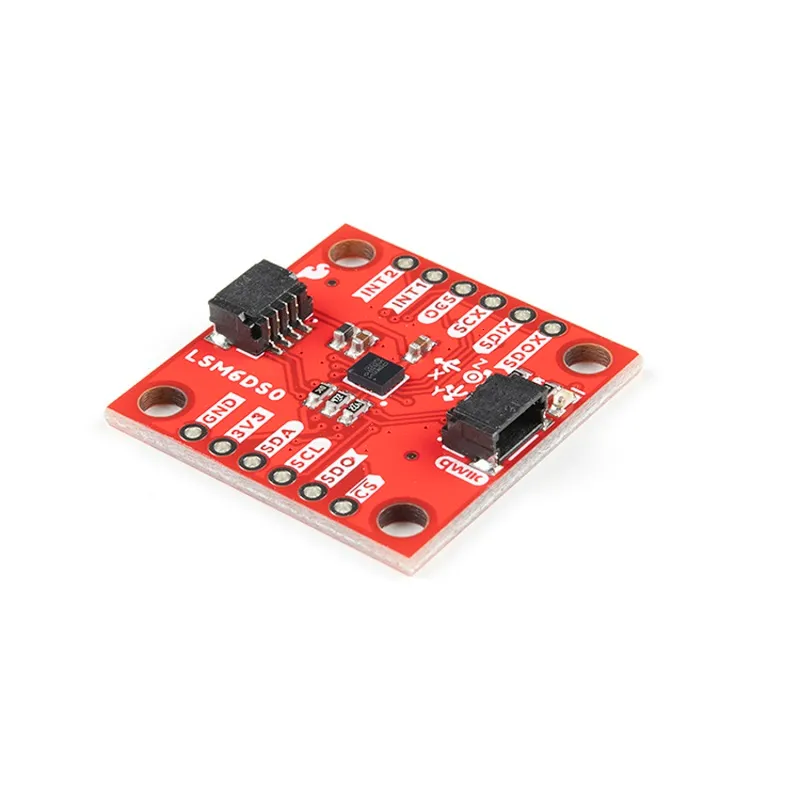

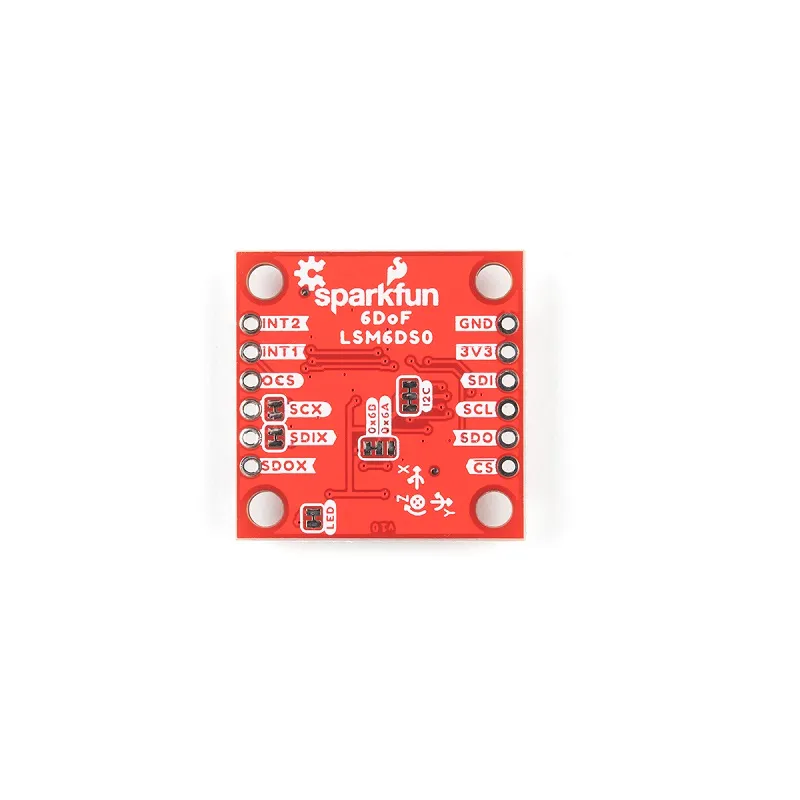

SparkFun SEN-18020 6 Degrees of Freedom Breakout LSM6DSO (Qwiic)

The SparkFun 6 Degrees of Freedom Breakout – LSM6DSO (Qwiic) is an accelerometer and gyroscope sensor with a giant 9kB FIFO buffer and embedded processing interrupt functions. Each LSM6DSO breakout has been designed to be super-flexible and can be configured specifically for many applications. With the LSM6DSO breakout, you will be able to detect shocks, tilt, motion, taps, count steps, and even read the temperature.

The LSM6DSO from STMicroelectronics is capable of reading accelerometer and gyroscope data up to 6.66kHz for more accurate motion sensing. As stated before this breakout also has the ability to buffer up to 9kB of data between reads, host other sensors, and drive interrupt pins all thanks to the LSM6DSO’s built-in FIFO.



Features:

1. Embedded temperature sensor
2. Programmable Finite State Machine: accelerometer, gyroscope, and external sensors
3. Significant Motion Detection, Tilt detection
4. Advanced pedometer, step detector, and step counter



Package includes:

1 x SparkFun 6 Degrees of Freedom Breakout – LSM6DSO (Qwiic)
