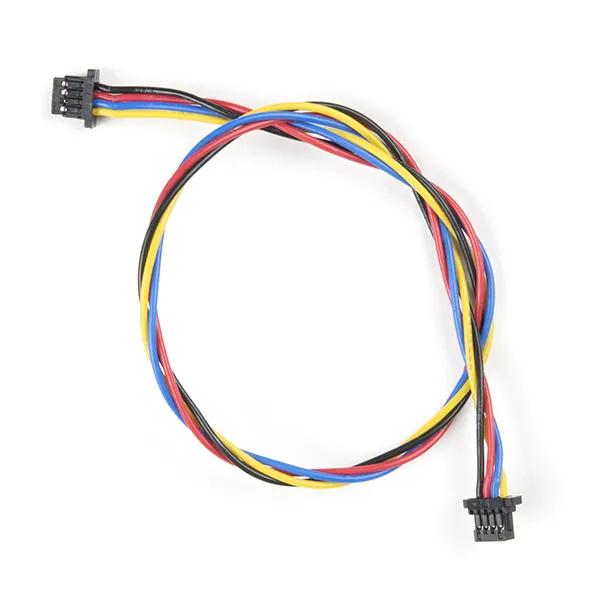

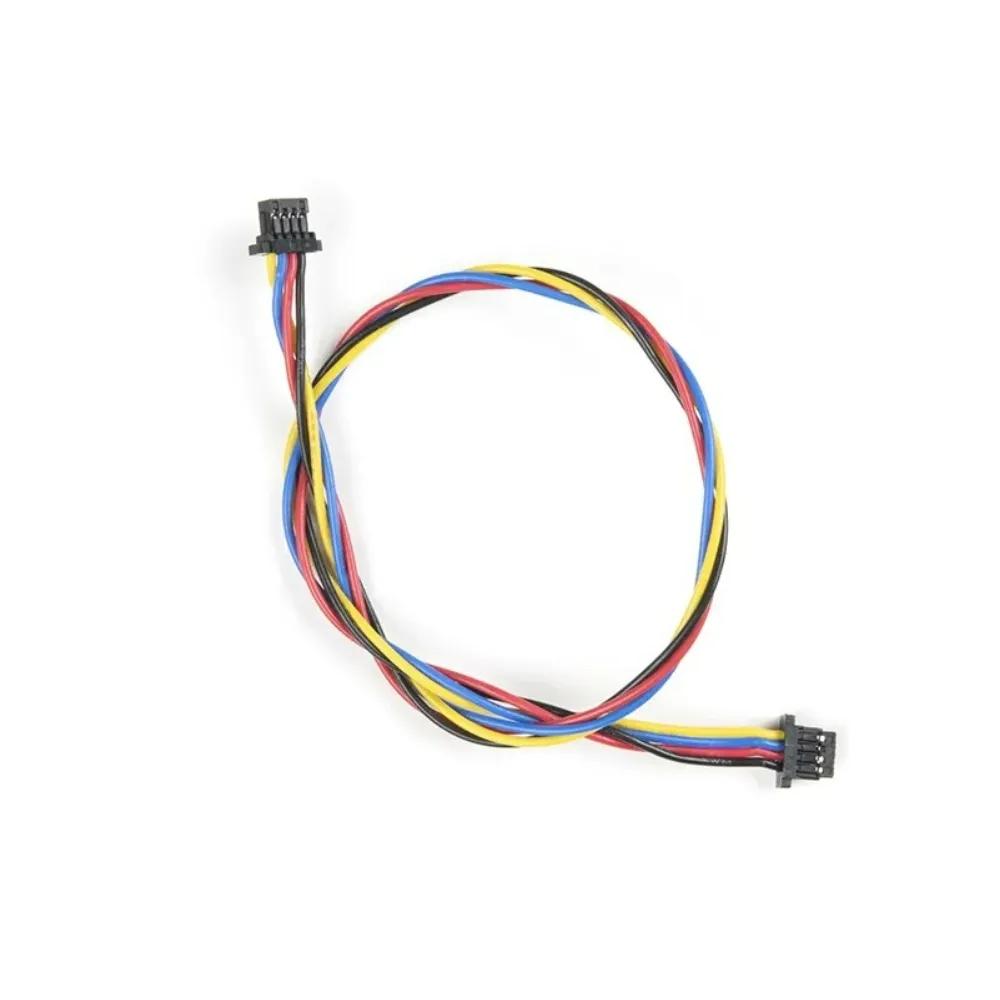

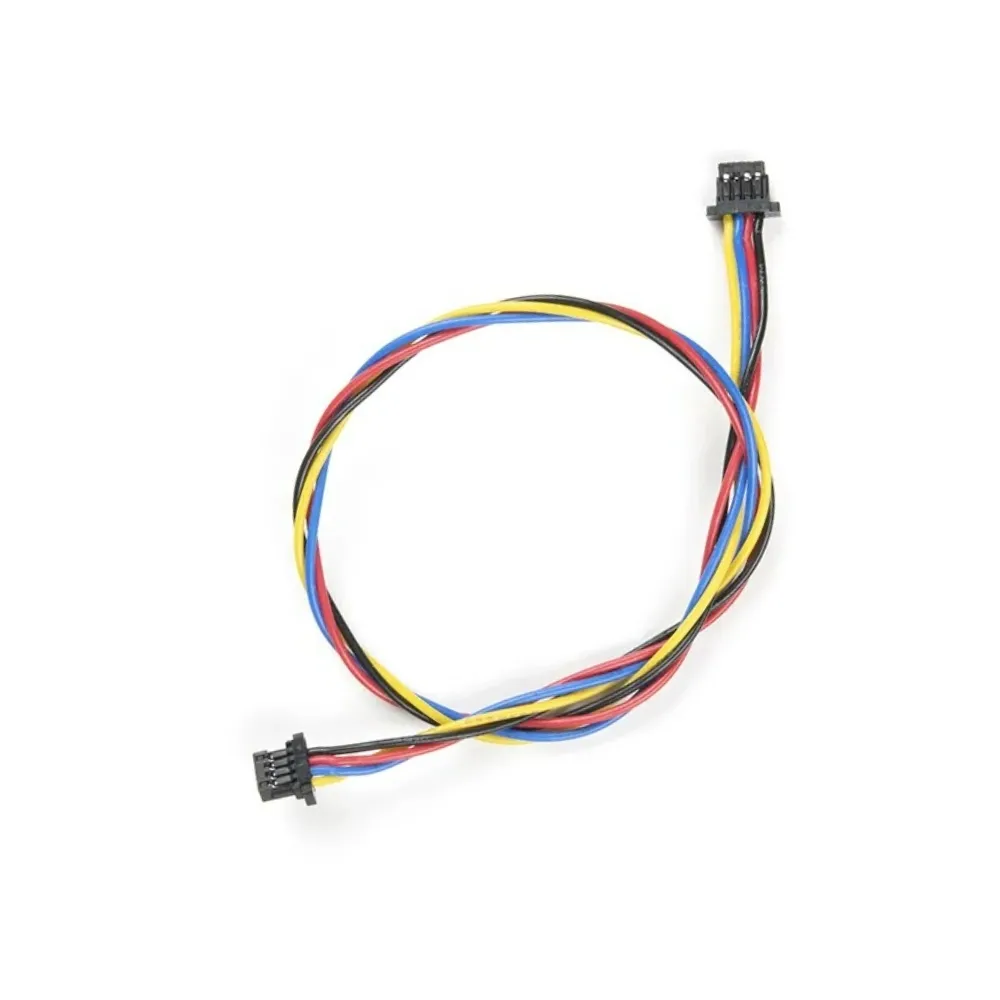

SparkFun PRT-17258 200mm Qwiic Cable With 1mm JST Connector

This is a 200mm Qwiic Cable With 1mm JST Connector. It’s designed to connect Qwiic enabled components together but can be used for other applications as well.

Each Qwiic Cable’s wires have been color-coded to red, black, blue and yellow. The SparkFun PRT-17258 Qwiic Cable is a 200mm long, 4-wire cable featuring 1mm pitch JST connectors on both ends, specifically designed for SparkFun’s Qwiic ecosystem. This plug-and-play cable allows easy daisy-chaining of I2C devices like sensors, displays, and controllers without soldering or crimping, streamlining prototyping and reducing wiring errors.

Features:

1. Cable Length: 200mm (20cm)
2. Connector Type: JST 1mm pitch, 4-pin (Qwiic standard)
3. Wire Gauge: 28 AWG stranded wire for flexibility and durability
4. Color Coding:
5. Red – Power (3.3V)
6. Black – Ground
7. Blue – SDA (Data)
8. Yellow – SCL (Clock)
9. Plug-and-Play: No soldering required – connect Qwiic-compatible devices instantly
10. Compact & Lightweight: Designed for space-constrained embedded systems
11. Compatibility: Works with all Qwiic-enabled SparkFun products and other I2C devices with JST 1mm connectors



Package Includes:

1 x Flexible Qwiic Cable 200mm With 1mm JST Connector
