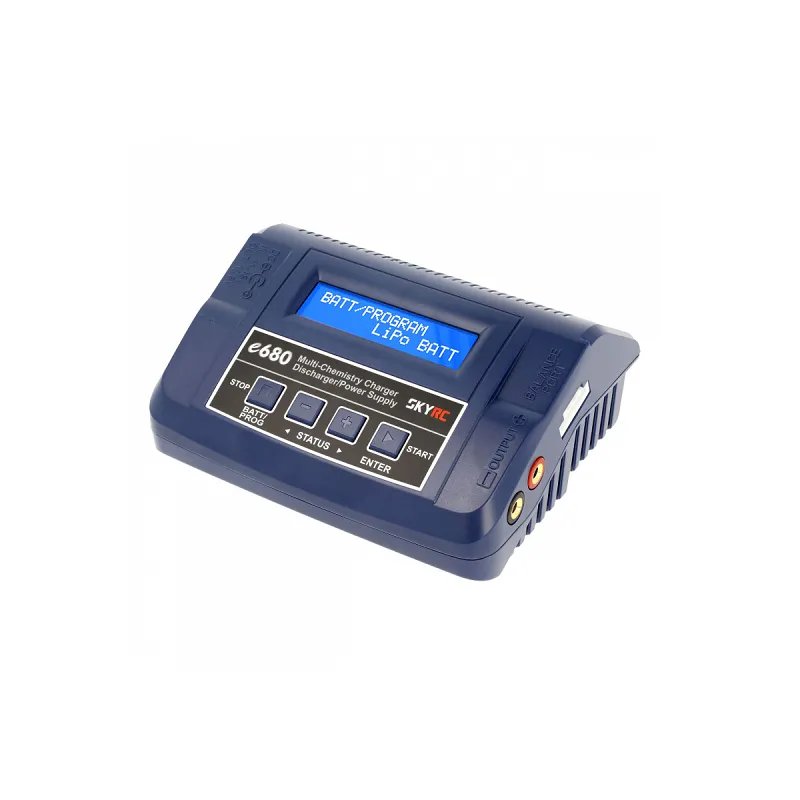

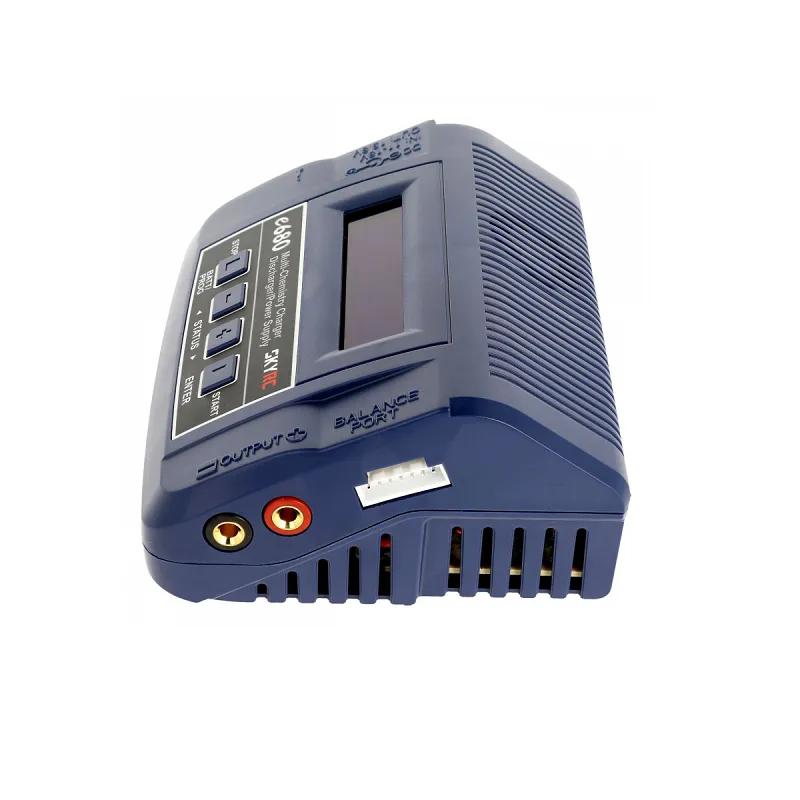

SKYRC e680 80W AC/DC Balance Charger / Discharger / Power Supply

The SKYRC e680 80W AC/DC Balance Charger / Discharger / Power Supply is easy to use and at the same time offers a variety of features. This charger can charge all popular battery types such as LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb and the system battery of the DJI Mavic. In addition, the e680 can directly supply consumers such as tire sander, LED pit lights, motor testers, etc. with 13.8V and 80W max power via the power supply function.

All common loading and unloading modes such as charge, balance charge, fast charge, storage, and discharge are mastered. Especially in the Pb program, the charger offers an AGM and cold charging mode. Also, DJI Mavic batteries are supported with their own mode (optional charging cable necessary).



Features:

1. Terminal Voltage Control.
2. Re-Peak Mode for NiMH/NiCd Battery.
3. Battery Voltage Meter.
4. Battery Internal Resistance Meter.
5. Up-to 80W DC Power Supply.
6. AGM and Cold Mode for PB Battery
7. Suitable for LiPo/LiHV/Lilon/LiFe/NiCd/NiMH/Pb und DJI Mavic Batteries.

e680 is capable of operating as a power supply with a maximum output of 80 watts so that it helps the hobbyists to power the DC equipment.

AC and DC Power Supply

SkyRC e680 charger is integrated with and AC and DC power supply, which output voltage is 13.8V with power ranging from 10W to 80W. That is really convenient for drivers to power their DC devices, such as tire warmer, Pit light, etc.

Support Charging DJI Mavic Battery

SkyRC e680 can charge DJI Mavic battery with the maximum charge current of 4A. The Mavic charging cable(SK-600023-06) is not included in the package. You need to purchase it separately.

AGM & Cold Charge Modes for PB Battery

SkyRC e680 can charge AGM battery and also can be used for charging PB battery at very low temperatures.

Thermal Cutoff

Battery internal chemical reaction will cause the battery temperature to rise. When the temperature limit is reached, the process will be terminated. This function is available by connecting optional temperature sensor cable (SK-600040-01), which is not included in the package. You need purchase it separately.

Smart & Efficient Cooling System

Temperature controlled 8000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.

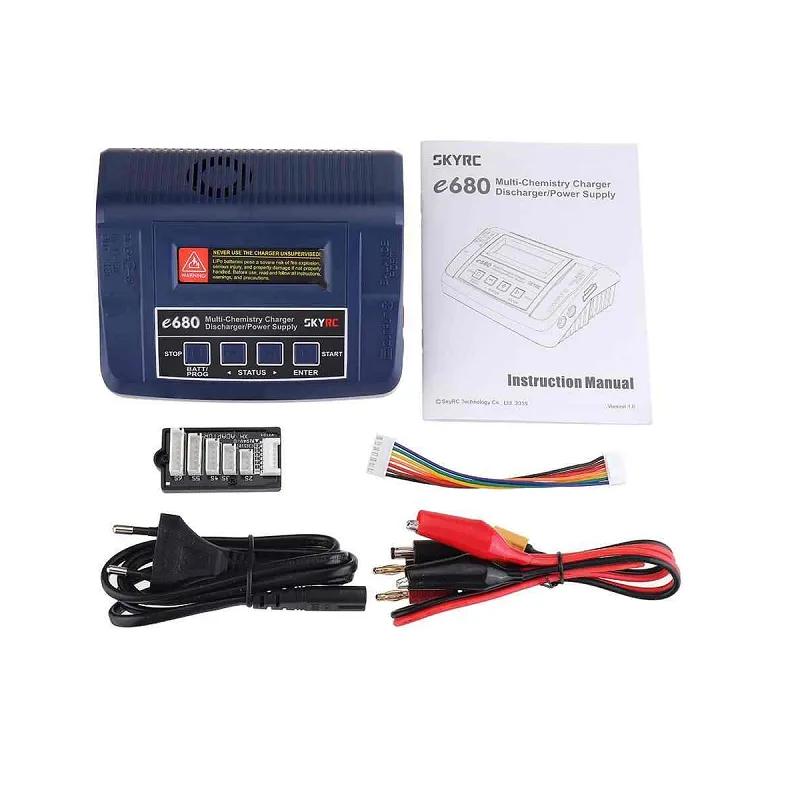

Package Includes:

1 x SKYRC e680 Charger (Original)

1 x Power cable

1 x Charging cable XT60

1 x Connecting cable DC input

1 x Balancer board XH

1 x Manual
