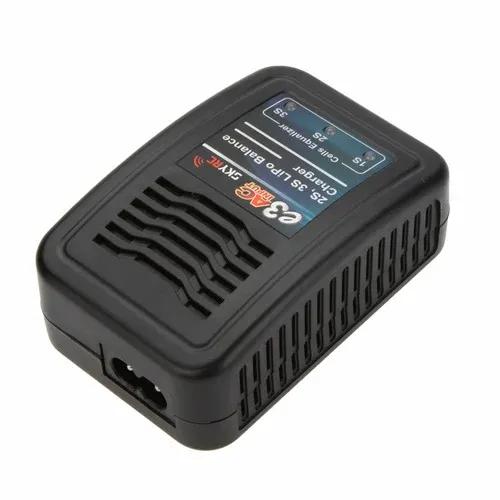

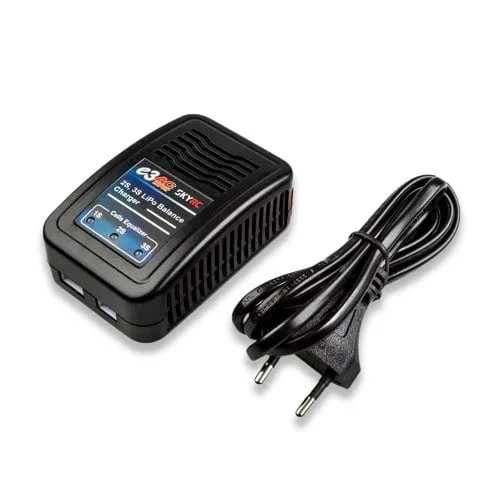

SKYRC E3 AC 2S~3S Li-Po Battery Balance Charger (V2)

This is SKYRC E3 AC 2S / 3S Li-Po Battery Charger (V2) (Original), it takes 100-240V, good for any country in the world. There are no buttons on the charger, so simply wait for the chargers green lights to come on, which means the battery is ready. It takes about 1-1.5 hours to charge an 11.1V 2200mah Li-Po Battery Pack.

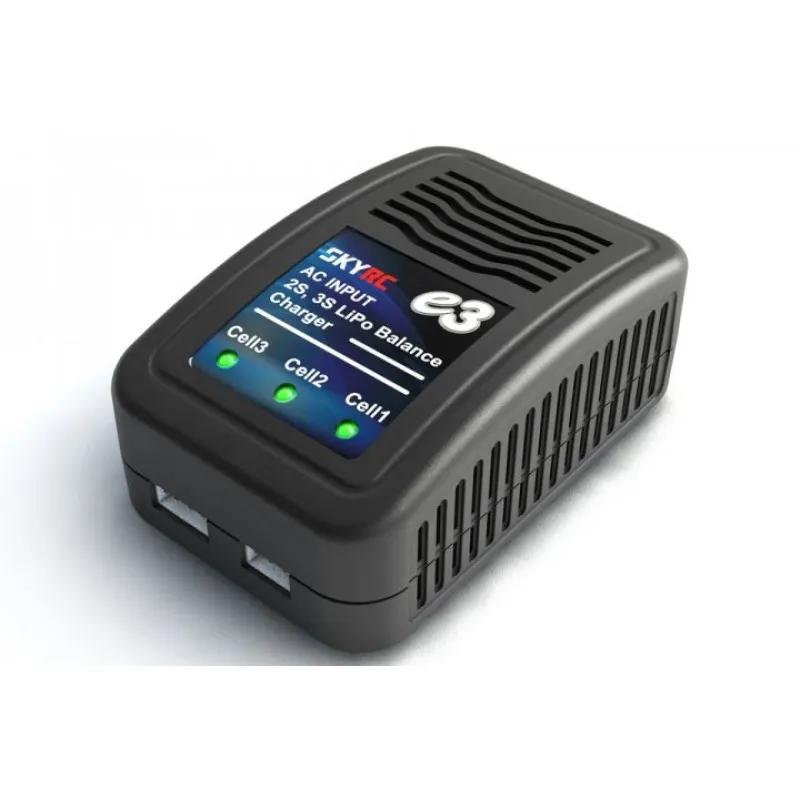

 Charge Status LED:

LED Indicator	Charger Status
LED stays green and flashes red	The charger is ready to charge
LED glows constant red	The charger is charging
LED glows constant green	The charging process finishes

Error Message:

All LEDs flashes red once and stop 1 second in cycle	The battery connects incorrectly
All LEDs flashes red twice and stop 1 second in cycle	The charger encounters overload or short circuit
All LEDs flashes red four times and stop 1 second in cycle	The voltage of a single cell is too high or too low
All LEDs flashes red six times and stop 1 second in cycle	There is a 300mv difference of voltage between a battery pack

Features:

Version 2.0.

Input: AC 110V-240V AC.

Dimension approx: 88 X 57 X 35mm.

Cell count range: 1-3 cells.

Max Charge Current: 1.5A.

Operational mode display: via 3 Leeds.

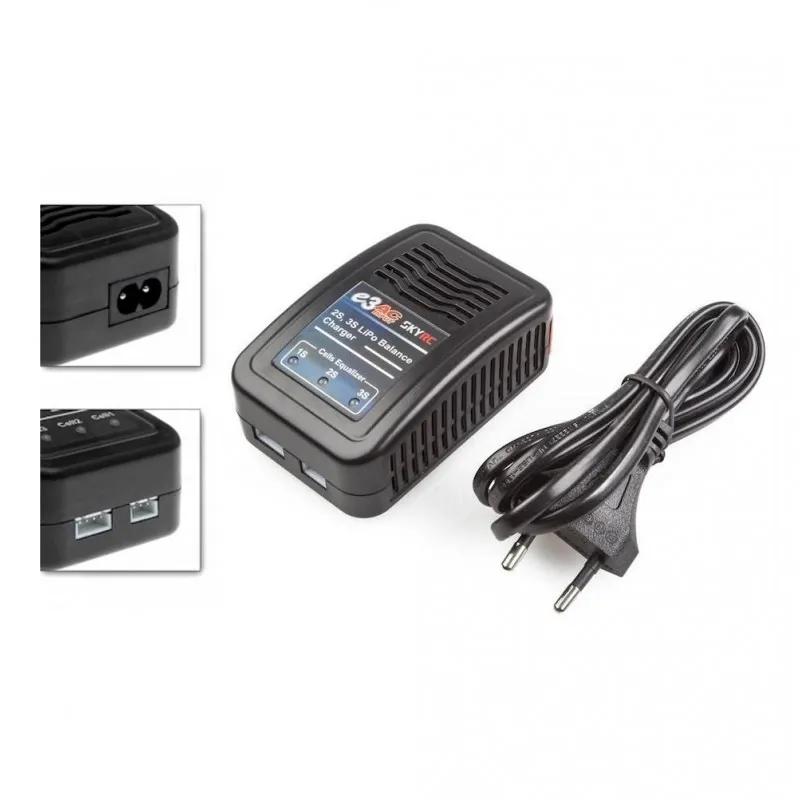

Package Includes:

1 x SKYRC E3 AC 2S / 3S Li-Po Battery Charger (V2) (Original).

1 x AC Power Cord (Indian Plug)
