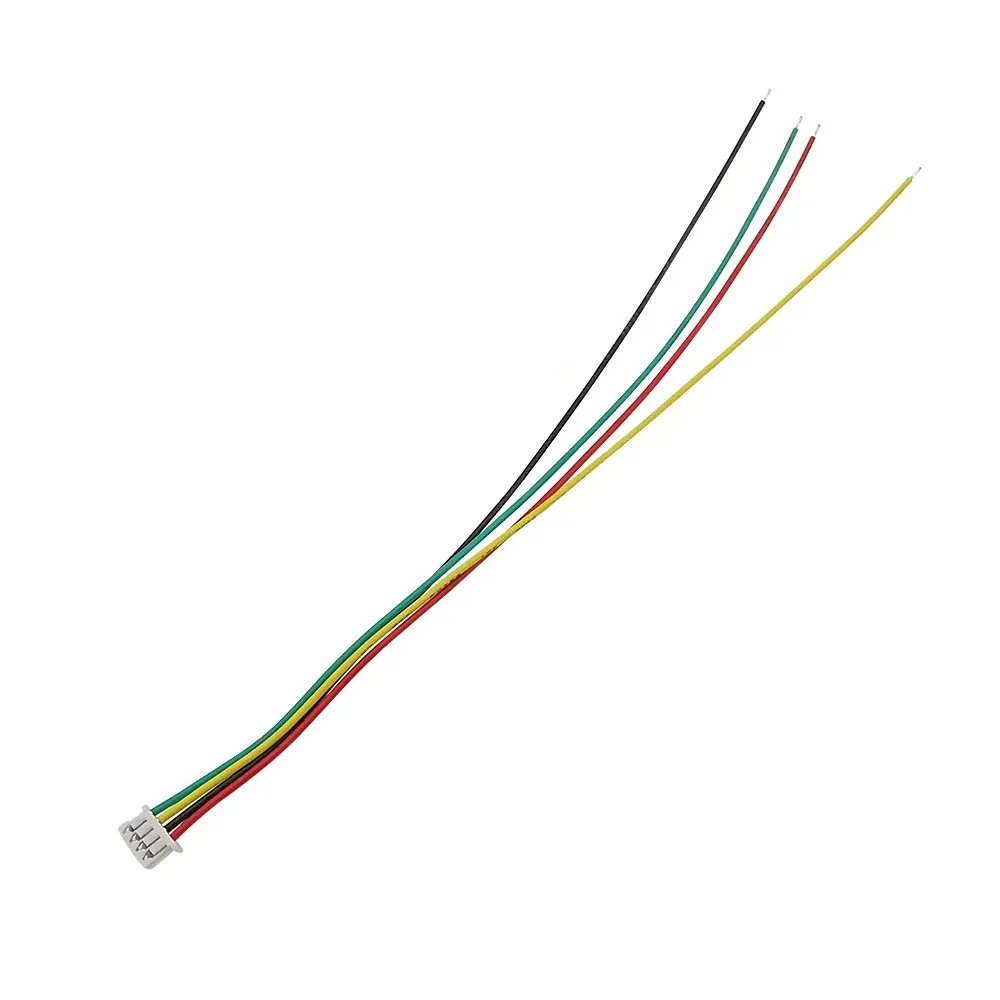

JST-XH 4 Pin 1.25mm Pitch Connector With 30cm Wire

The JST-XH 4 Pin 1.25mm Pitch Connector With 30cm Wire of crimp receptacle contacts and cable assemblies from JST are great for use in the Molex series connector. This is a 4-pin female connector with wire for the wire-to-board connector. This 4 PIN JST type female connector has a 1.25 mm pitch and a wire length of 30 cm. These 1.25mm JST connectors are designed to make high-density connections of internal wires to printed circuit boards simple and are compact & highly reliable.

Features:

1. Ideal for space-constrained applications requiring multiple signal or power connections.
2. Ensures reliable connectivity with compatible JST-XH sockets or headers.
3. Ready-to-use with 28–32 AWG wires for convenient installation and flexibility in wiring.
4. Provides stable and durable electrical contact with low contact resistance (<20 mΩ).
5. Constructed from PA66 (UL94V-2) flame-retardant material for enhanced safety.
6. Supports up to 125V and 500mA, suitable for low-power electronic applications.
7. Insulation resistance >100 MΩ and can withstand 500V AC for 1 minute.
8. Works reliably from -25°C to +85°C, suitable for most indoor and light outdoor use.
9. Weighs approximately 1 gram, perfect for drones, robotics, battery packs, sensors, and DIY electronics.

Package Includes:

1 X 4 Pin JST-XH 1.25mm Pitch Connector With 30cm Wire
