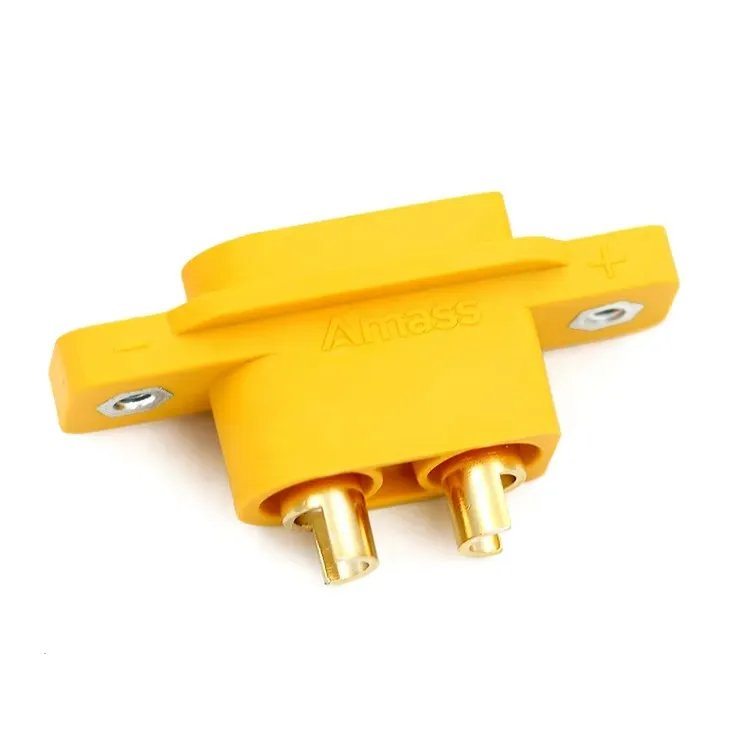

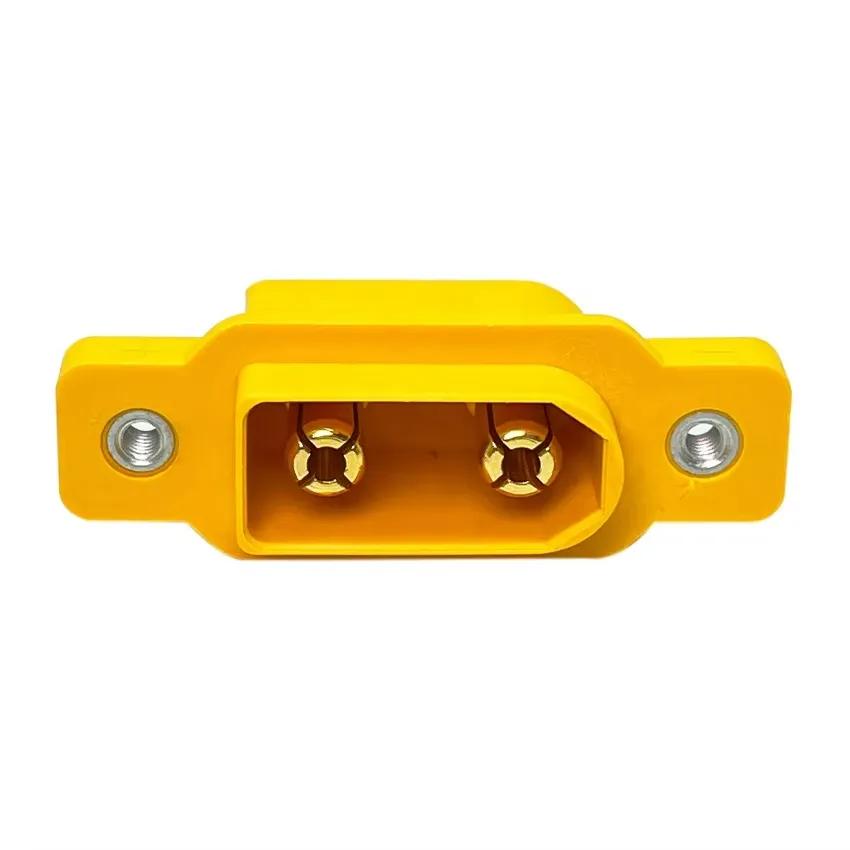

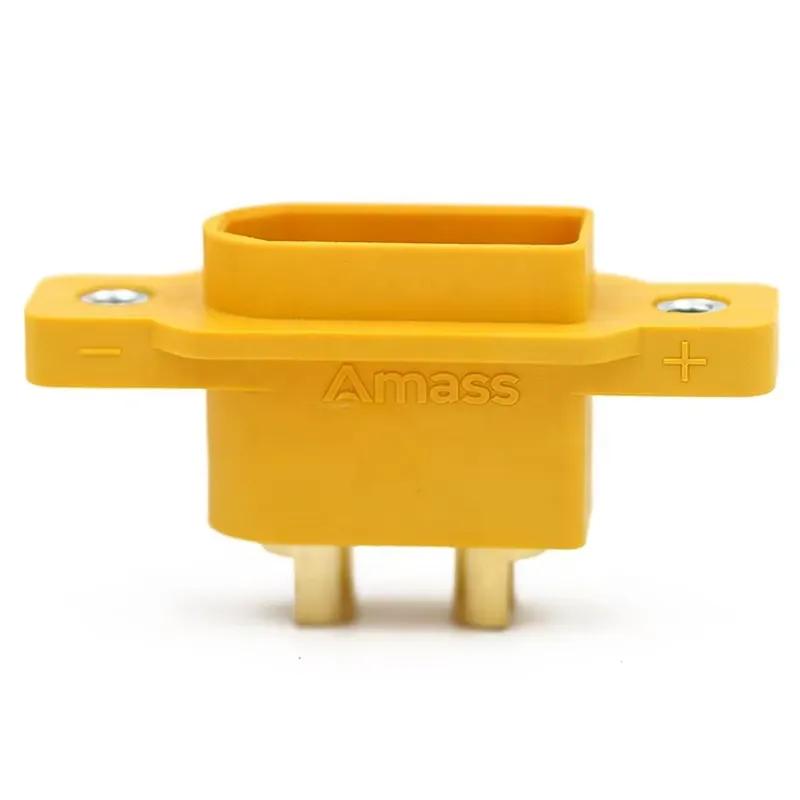

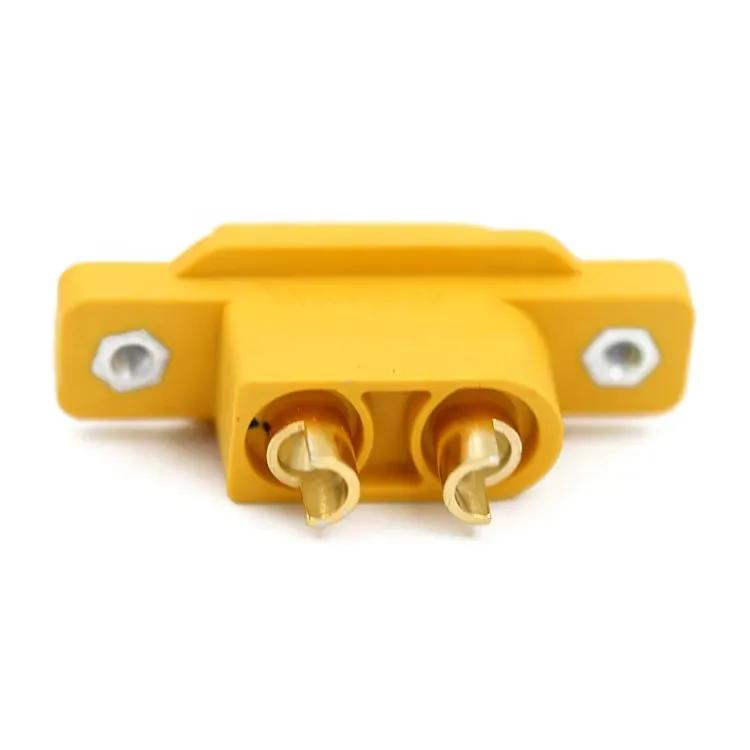

AMASS XT90NE-M Male Yellow High Power RC Connector For Lipo Battery

The Amass XT90NE-M is a high-performance electrical connector designed specifically for high-current applications, such as those found in drones, RC vehicles, electric vehicles (EVs), and power distribution systems. This particular model, denoted with the "M" suffix, refers to the male connector of the XT90 series, which is widely recognized for its reliability and robustness in handling high-power connections.

The Amass XT90NE-M connector is ideal for heavy-duty applications requiring secure, low-resistance, and high-current connections. It is commonly used in high-performance drones, RC cars, and electric vehicles, where maintaining efficient power transfer is critical.



Features:

1. Rated for 90A continuous current, with the ability to handle peak currents up to 120A. This makes the Amass XT90NE-M suitable for high-power applications such as electric vehicles, drones, and RC models.
2. Contacts: Made from high-conductivity copper, with gold or nickel plating (depending on the model), ensuring minimal resistance and efficient power transfer.
3. Housing: The Amass XT90NE-M features a durable, high-temperature nylon housing that can withstand extreme temperatures (up to 120°C), ensuring long-lasting reliability even under harsh conditions.
4. Anti-Spark Design: The Amass XT90NE-M connector includes an integrated anti-spark feature, preventing any arcing or sparking when connecting or disconnecting the terminals, which is particularly important in high-voltage systems.
5. Secure Locking Mechanism: The male XT90 connector has a secure fit and is designed with a locking tab to prevent accidental disconnections during operation. The tab ensures that the connector stays firmly in place even in vibration-prone environments.
6. The nylon housing is designed to resist high temperatures, withstanding up to 120°C (248°F), making it suitable for systems with high thermal loads.
7. Wire Gauge Compatibility: The Amass XT90NE-M is designed to work with 10 AWG to 12 AWG wire, allowing flexibility for different power systems.
8. Crimp or Solder Installation: The connector features easy wire attachment through crimping or soldering, offering a secure, long-lasting connection.
9. The Amass XT90NE-M male connector is color-coded, typically with yellow or orange, to make it easy to identify positive and negative connections, ensuring that wiring errors are minimized.
10. The Amass XT90NE-M connector is engineered to handle hundreds of connection cycles without significant wear, providing long-term reliability in demanding applications like electric vehicles, RC models, and drone systems.

Product includes:

1x Amass XT90NE-M male connector
