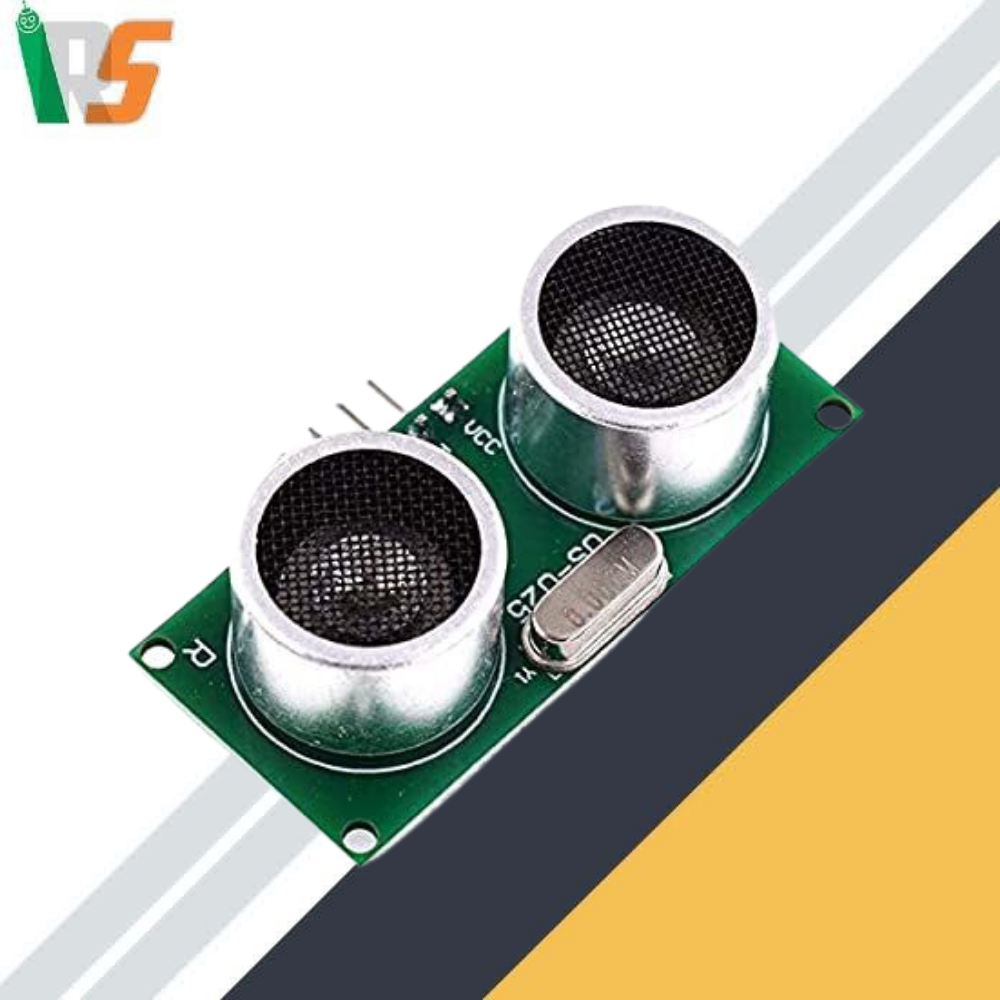

US-025 Transducer Ultrasonic Ranging Distance Sensor Ultrasonic Wave Detector Ranging Module
IRSEM00017
₹420.00
In stock
1
Product Details
Brand:
IRS
Description
Voltage: DC3V~5.5V Output mode: GPIO Working temperature: 40°- 85° Sensing angle: less than 15 degrees Working current 5.3mA Package Include:1 pc Ranging Module Detection accuracy: 0.1 cm + 1% Detection range: 2 cm 600 cm Module size: 45mm*20mm*1.2mm The US-025/US-026 ultrasonic ranging module can realize the non-contact ranging function of 2cm~6m, the working voltage is 3V~5.5V, and the working current is 5.3mA. Support GPIO communication mode, stable and reliable work. US-025 and US-026 have the same performance, size and principle. The difference is that: US-025 adopts double panel, US-026 adopts single panel;
Voltage: DC3V~5.5V Output mode: GPIO Working temperature: 40°- 85° Sensing angle: less than 15 degrees Working current 5.3mA Package Include:1 pc Ranging Module Detection accuracy: 0.1 cm + 1% Detection range: 2 cm 600 cm Module size: 45mm*20mm*1.2mm The US-025/US-026 ultrasonic ranging module can realize the non-contact ranging function of 2cm~6m, the working voltage is 3V~5.5V, and the working current is 5.3mA. Support GPIO communication mode, stable and reliable work. US-025 and US-026 have the same performance, size and principle. The difference is that: US-025 adopts double panel, US-026 adopts single panel;
Product type: Electronic Modules
